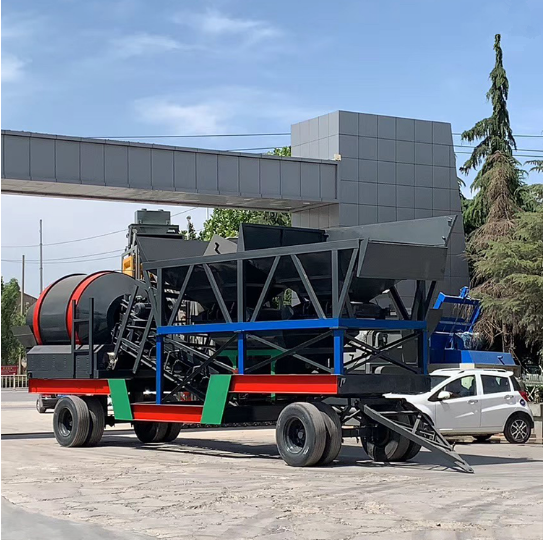

JZM 1500-2 Mobile Concrete Mixing Plant With Drum

  • Name of the ParameterJZM1500-2
  • Discharging height1.6m
  • Model of MixerJZM1500
  • Model of BatcherPLD1600-2
  • Max. Aggregate Dia60/80mm
  • Dimension(L * W * H)12m X 2.3m X 4.2m
  • Aggregate bin volume8m³×2
  • Aggregate Type2
Share with:
  • Product Overview
  • Technical parameters
  • Inquiry
Products Description:
JZM Series Mobile Concrete Batching Plant With Drum Type Concrete Mixer as one of the YHZM Series mobile concrete batching plant is a new type mixing plant adapt to the fast installation and movement. It is designed and manufactured by our factory based on the practical construction projects. The whole design is with convenient installation, stable and reliable operation convenient transportation. It has the advantages of flexible movement, quick and easy assembly and disassembly, and stable performance. It is the preferred choice for field construction projects such as railways, highways, ports, bridges, and hydropower projects.

Features of JZM Series Mobile Concrete Batching Plant:
1. Aggregate batching and transferring is automatic and precise;
2. Concrete mixing quality is observable, drum clockwise rotating for mixing, and anti-clockwise rotating for discharging;
3. The whole plant chassis can be moved easily, don't need to be separated and assembled;
4. This plant is designed to work without foundation, even cooperate working with horizontal cement silo;
5. Compared with twin-shaft concrete mixer plant, this concrete batching plant is cheap and save the shipments cost.


Details of JZM1500-2 Mobile Concrete Batching Plant


a. Tires: Double tires, strong pressure bearing capacity, strong stability, non-slip.
b. Support leg: Quick disassemble and assembly, stabilize machine during work, protect tires, and extend service life.
c. Universal Steering wheel: can be dragged by a medium-sized forklift directly, ensure the direction changing stably.
d. Storage hopper base: moved from the middle to the front generating two advantages:
a).remaining space can be used for the generator, control cabinet, water tank, tool box, etc.;
b). shorten the length of the feeding belt and the feeding time, thereby shortening the single mixing cycle by 10s, and improving the working efficiency.
e. Support steel: Increase the bearing capacity of the chassis and extend the service life. Compact structure: Movable completely, work on the supporting legs, No foundation ne
eded

Technical Parameters

Model

JZM500-2

JZM750-2

JZM1000-3

JZM1500-2

 Theory capacity

25m³/h

35m³/h

50m³/h

75m³/h

Discharging height

1600mm

1600mm

1600mm

1600mm

Total power

44kw

50kw

58.9kw

66.9kw

Dimension(L * W * H)

8 X 2.2m X3.8m

8m X 2.2m X3.8m

13.5m X 2.3m X 4.2m

12m X 2.3m X 4.2m


Mixing System

Model of Mixer

JZM500

JZM750

JZM1000

JZM1500

Mixing motor

2*5.5kw

2*7.5kw

2*11kw

2*15kw

Discharging volume

500L

750L

1000L

1500L


Aggregate System

Model of Batcher

PLD800-2

PLD1200-2

PLD1200-3

PLD1600-2

Aggregate bin volume

5m³×2

6m³×2

7m³×3

8m³×2

Max. Aggregate Dia

60/80mm

60/80mm

60/80mm

60/80mm


Measurement System

Cement weighing hopper

500KG

500KG

560KG

900KG

Water weighing support

220KG

220KG

220KG

330KG

Additive weighing support

30KG

30KG

30KG

40KG

Trailer Speed

40-60Km/h

40-60Km/h

40-60Km/h

40-60Km/h

Optional cement silo

50/100T

50/100T

50/100T

50/100T

 Main Parameters of JZM1500-2 Mobile Concrete Batching Plant

Model

JZM1500-2

 Theory capacity

75m³/h

Discharging height

1600mm

Total power

66.9kw

Dimension(L * W * H)

12m X 2.3m X 4.2m


Mixing System

Model of Mixer

JZM1500

Mixing motor

2*15kw

Discharging volume

1500L


Aggregate System

Model of Batcher

PLD1600-2

Aggregate bin volume

8m³×2

Max. Aggregate Dia

60/80mm


Measurement System

Cement weighing hopper

900KG

Water weighing support

330KG

Additive weighing support

40KG

Trailer Speed

40-60Km/h

Optional cement silo

50/100T
