Information of  Diesel mobile concrete mixer machine

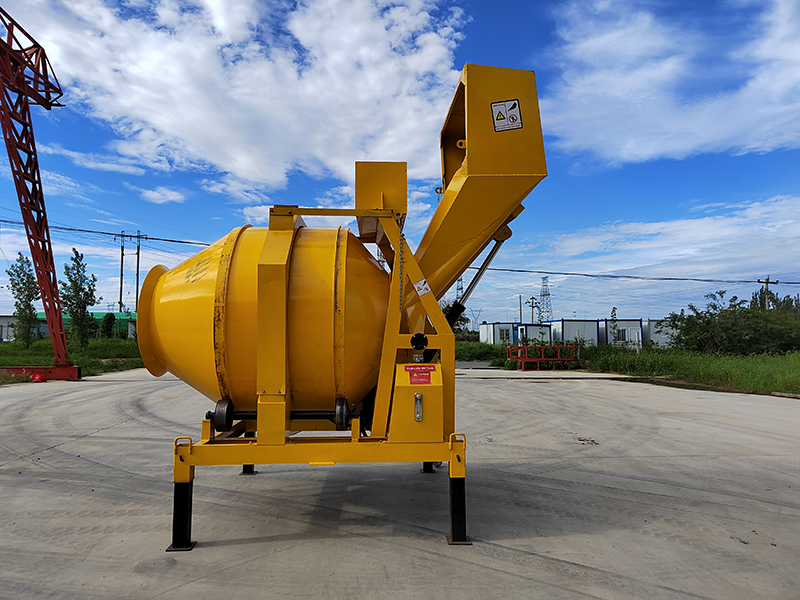

Self loading Concrete Mixer with Diesel Engine Power and Hydraulic Tipping Hopper is a self loading concrete mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.

The mixer is designed and manufactured according to GB/T9142-2000<Concrete Mixer>, it is featured by novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, JZC350-DH Concrete Mixer is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.

Main Features

1) Chinese TOP Brand CHANGCHAI or CHANGFA Powerful water-cooled Diesel Engine As Option
2) Steel Flexible Guide Wheel
3) Robust and Strong Trailing Rod
4) Big Capacity Hydraulic Oil Tank(70 Liter)
5) Middle Situated and Bolt Connected Design of Grand Gear Ring.
6)Wear resistant plate for Mixing Drum ,thickness from 6mm to 8mm.

Features 1:Water-cooled Diesel Engine

Brand: CHANGCHAI Brand, CHANGFA Brand

Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits.



Features 2:Portection Cover
Material: Q235 Steel Plate,3mm
Features:Made by Q235 Steel Plate,which thickness is 3 mm,make sure it can protect the Transmission System from damaged . What's more,because of the Engine was setted in the cover, which could prevent the dust and concrete from coming to engine directly. And thus the service life of the engine could be prolonged.

Features 3:Concrete Mixing Drum

Material: Q345 Wear resistant Steel Plate

(1)The Drum Thickness is 6mm,made by Q345 Wear resistant Steel Plate.

8 mm as Option.

(2)Middle Situated and Bolt Connected Design of Grand Gear Ring.

a. The Middle Situated Design of Grand Gear Ring makes power transmission more balanced

b.The Bolt Connected Design could it more easier to change the gear ring when it is broken.

Features 4:The Heavy-duty Frame

We use No.12 BOX IRON as our Concrete Mixer Frame.The material width is 12cm.which is much more robust than normal type.

Features 5:Transmission system

Rational Design,guarenteed the power transmission.Make sure that this machine could have a longer Service Life and Less Maintenance.

 Parameter
