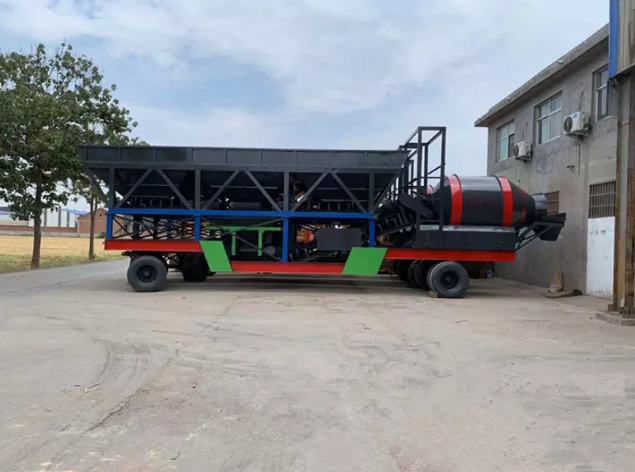

JZM 1000-3 Mobile Concrete Mixing Plant With Drum

  • Name of the ParameterJZM1000-3
  • Model of MixerJZM1000
  • Mixing motor 2*11kw
  •  Theory capacity50m³/h
  • Discharging height1.6m
  • Aggregate bin volume7m³×3
  • Dimension(L * W * H)13.5m X 2.3m X 4.2m
  • Aggregate Type3
Share with:
  • Product Overview
  • Technical parameters
  • Inquiry


Features of JZM Series Mobile Concrete Batching Plant:
1. Aggregate batching and transferring is automatic and precise;

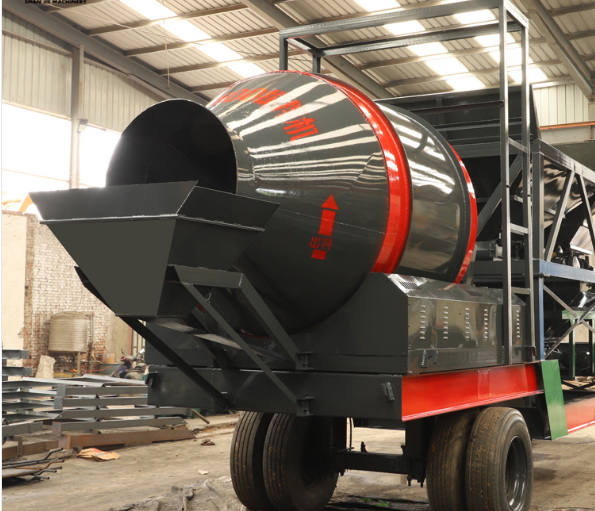

2. Concrete mixing quality is observable, drum clockwise rotating for mixing, and anti-clockwise rotating for discharging;
3. The whole plant chassis can be moved easily, don't need to be separated and assembled;
4. This plant is designed to work without foundation, even cooperate working with horizontal cement silo;
5. Compared with twin-shaft concrete mixer plant, this concrete batching plant is cheap and save the shipments cost.


Advantages of JZM Series mobile concrete batching plant
1.Quick disassembly:Except for the connecting equipment such as screw conveyor and cement silo. All the wiring of the mixing station need not be removed.
2. High degree of automation: The control room uses the microcomputer control system to automatically feed the material. The mixing station operator can set the ratio and complete the rated mixing times.
3. Stir well :With a compulsory twin shaft concrete mixer, uniform mixing can be achieved with the shortest mixing time



Technical Parameters

Model

JZM500-2

JZM750-2

JZM1000-3

JZM1500-2

 Theory capacity

25m³/h

35m³/h

50m³/h

75m³/h

Discharging height

1600mm

1600mm

1600mm

1600mm

Total power

44kw

50kw

58.9kw

66.9kw

Dimension(L * W * H)

8 X 2.2m X3.8m

8m X 2.2m X3.8m

13.5m X 2.3m X 4.2m

12m X 2.3m X 4.2m


Mixing System

Model of Mixer

JZM500

JZM750

JZM1000

JZM1500

Mixing motor

2*5.5kw

2*7.5kw

2*11kw

2*15kw

Discharging volume

500L

750L

1000L

1500L


Aggregate System

Model of Batcher

PLD800-2

PLD1200-2

PLD1200-3

PLD1600-2

Aggregate bin volume

5m³×2

6m³×2

7m³×3

8m³×2

Max. Aggregate Dia

60/80mm

60/80mm

60/80mm

60/80mm


Measurement System

Cement weighing hopper

500KG

500KG

560KG

900KG

Water weighing support

220KG

220KG

220KG

330KG

Additive weighing support

30KG

30KG

30KG

40KG

Trailer Speed

40-60Km/h

40-60Km/h

40-60Km/h

40-60Km/h

Optional cement silo

50/100T

50/100T

50/100T

50/100T

 Main Parameters of JZM1000-3 Mobile Concrete Batching Plant

Model

JZM1000-3

 Theory capacity

50m³/h

Discharging height

1600mm

Total power

58.9kw

Dimension(L * W * H)

13.5m X 2.3m X 4.2m


Mixing System

Model of Mixer

JZM1000



Mixing motor

2*11kw



Discharging volume

1000L


Aggregate System

Model of Batcher

PLD1200-3



Aggregate bin volume

7m³×3



Max. Aggregate Dia

60/80mm


Measurement System

Cement weighing hopper

560KG



Water weighing support

220KG



Additive weighing support

30KG

Trailer Speed

40-60Km/h

Optional cement silo

50/100T
