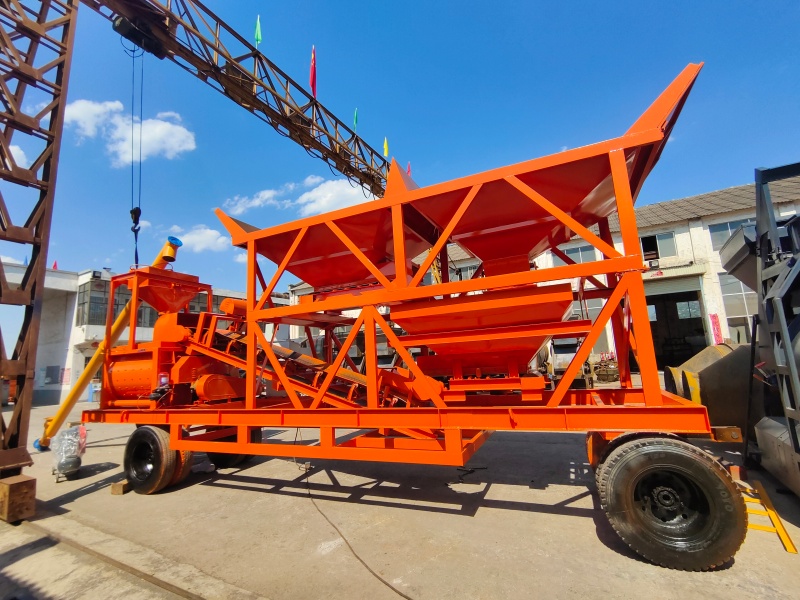

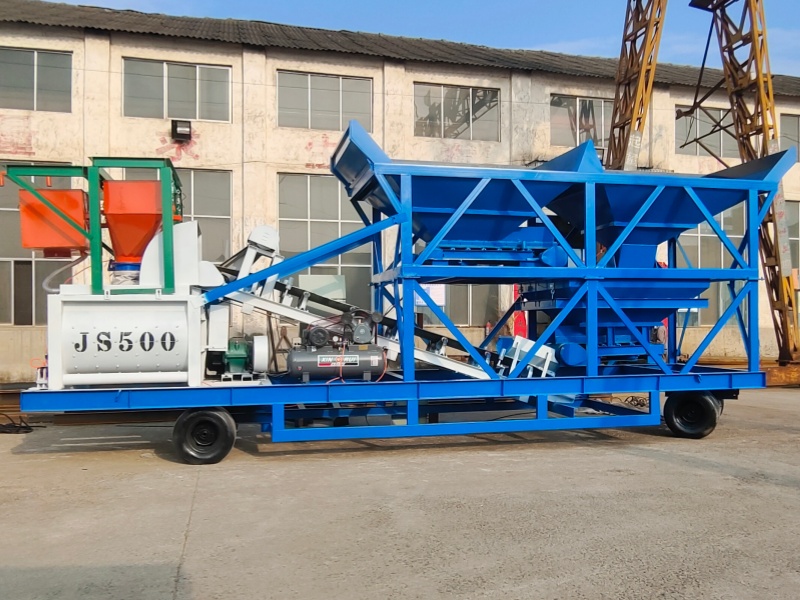

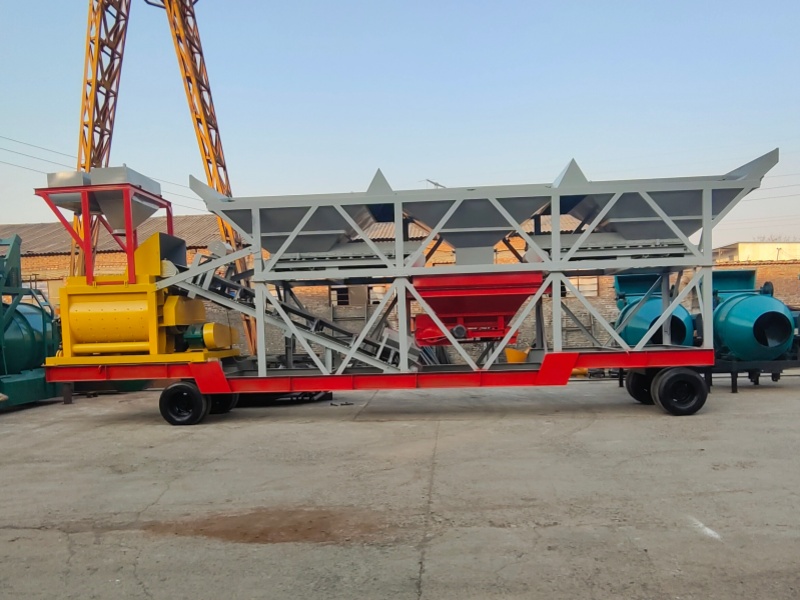

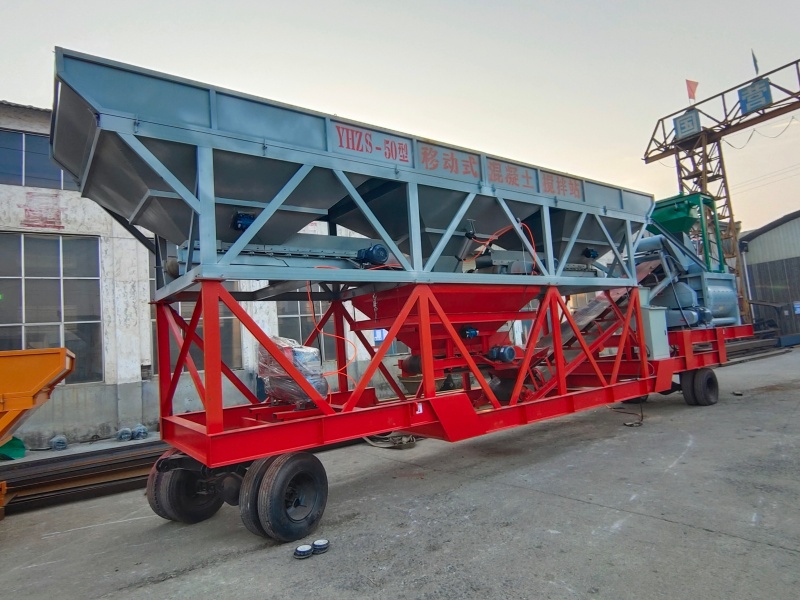

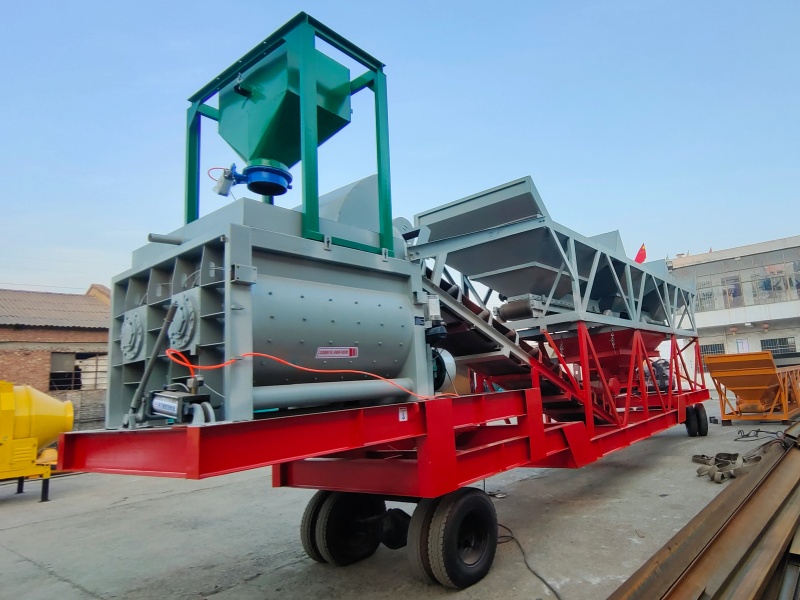

Mobile concrete batching plant is a station of material storage material, weighing, conveying, stirring, unloading and automatic control ; The process, operation and maintenance are exactlythe same with fixed automatic batching plant; It is a combination of mobile and flexible, easy disassembling fast, simple storage management and other unique characteristics; Suitable for railways, Bridges, ports, water and electricity engineering construction .
The advantages are :
1. Quick disassembling, move convenient.
2. Other properties and operating mode, principle are same with fixed standard station.
Technical Parameters
|
Model |
JS500 |
JS750 |
JS1000 |
JS1500 |
|
|
Productivity(m³/h) |
25 |
35 |
60 |
90 |
|
| Motor(kw) | 18.5 | 30 | 18.5*2 | 30*2 | |
| Discharge quantity(L) | 500 | 750 | 1000 | 1500 | |
| Mixing volume(L) | 800 | 1200 | 1600 | 2400 | |
| Cycle Period（s） | 60 | 60 | 60 | 60 | |
| Max.Aggregate Diameter(mm) | 80 | 80 | 80 | 80 | |
|
Aggregate bin capacity(m³) |
3 | 3 | 3.5 | 4 | |
| Discharge Height(m) | 1-1.5 | 1-1.5 | 1-1.5 | 1-1.5 | |
| Total power(kw) | 38 | 55 | 85 | 100 | |
|
Weighing accuracy |
Aggregate |
±2% |
±2% |
±2% |
±2% |
|
Cement |
±1% |
±1% |
±1% |
±1% |
|
| Water | ±1% | ±1% | ±1% | ±1% | |
| Additive | ±1% | ±1% | ±1% | ±1% | |
Features:
1. More secure: layout and installation of electrical wiring fully considers safety. Many places are equipped with safety switch.
2. More reliable: Professional embedded computer, which can be operated manually, automatically and automatic production which will meet a variety of needs. And the control system has the data backup function at sudden power outage which can effectively prevent data destruction.
3. More powerful: Automatic storage management can record operational process. And automatically maintenance warning system can remind operators.
|
