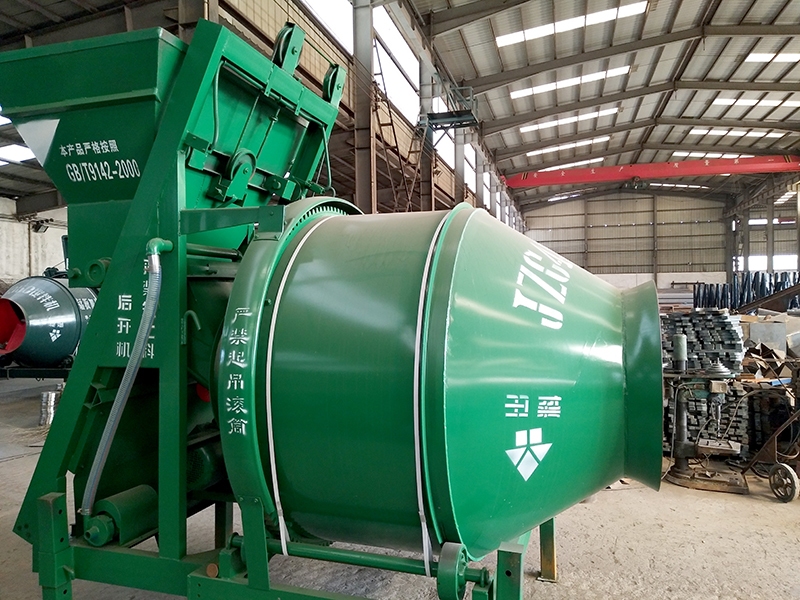

JZC series concrete mixer , include automatic ones with twin motor and sub-automatic with single motor. Automatic type’s hopper is driven by conical motor,
and hopper up & down , mixing drum’converse & reverse rotary is controlled by electric cabinet , and sub-automatic type’s hopper is operated by handle . Besides, this model can be driven by electric or diesel engine,to meet the requirements of different construction conditions.
1. Adopt diesel engine as working power source, can be operation in no electricity area;
2. Hydraulic tipping hopper (or wire rope hoisting) for aggregate feeding;
3. Adding a water pump for water circulation between water tank and water radiator, keep the water
temperature to be stable;
4. Removing the air sucking point from the back to the front, reduce to suck the dust. It will be good to
prolong the service life of the engine.
Parameter
|
|
Item\Model |
JZC250 |
JZC350 |
JZC500 |
JZC750 |
|
Working Performance |
Feeding capacity(L) |
320 |
560 |
500 |
750 |
|
Discharging volumn(L) |
250 |
350 |
500 |
750 |
|
|
Productivity(M3/H) |
6-8 |
10-14 |
18-20 |
20-22 |
|
|
Roating speed ofstirring shaft(r/min) |
17 |
14 |
13 |
13 |
|
|
Max.diameter of aggregates(mm) |
60 |
60 |
60-80 |
60-80 |
|
|
Accuracy of watersupply |
Error≤2% |
Error ≤2% |
Error ≤2% |
Error ≤2% |
|
|
Moter |
Mixer motor(KW) |
4 |
5.5 |
11 |
15 |
|
Lift motor(KW) |
4 |
4.5 |
5.5 |
7.5 |
|
|
Pump motor(KW) |
0.55 |
0.55 |
0.75 |
1.1 |
|
|
|
Tyre standard |
6.50-16 |
6.50-16 |
7.50-16 |
|
|
Max.transport speed(KM/H) |
20 |
20 |
20 |
|
|
|
Overall size(MM) |
2260* 1990*2750 |
2766* 2140*3000 |
5226* 2200*5460 |
6116* 2056*6060 |
|
|
Total mass(KG) |
1300 |
1950 |
3100 |
4200 |
|
|
