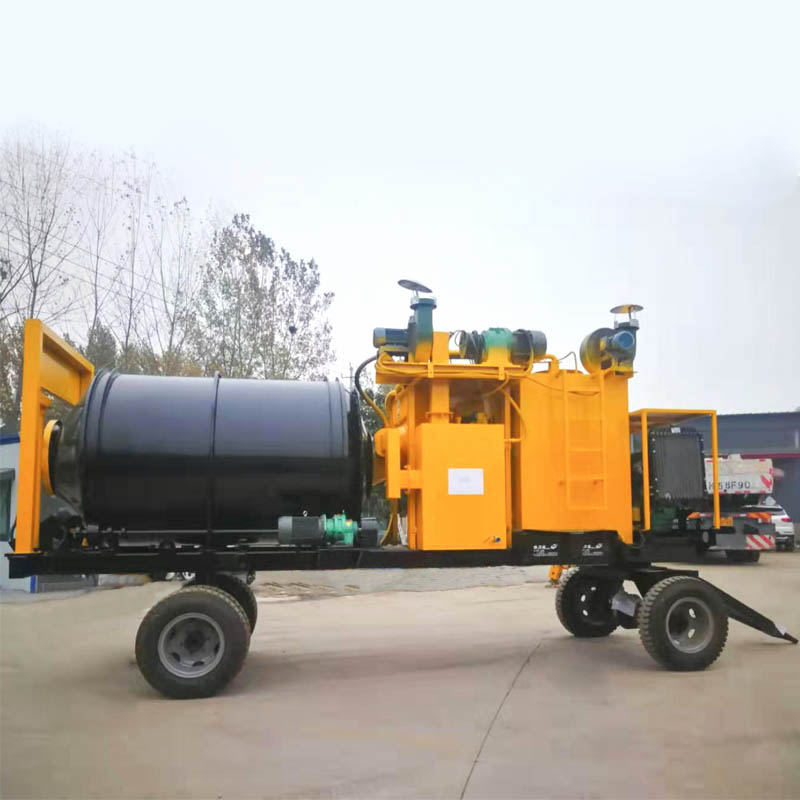

XY6-9 Mobile Asphalt Mixer

  • Name of the ParameterXY6-9 Mobile Asphalt Mixer
  • Capacity1.5 ton/batch,10-15min/times
  • Insulation roller volume5M3
  • Asphalt tank volume900L
  • Heat transfer oil volume300L
  • Overall dimension(L*W*H) 6800 x 2300 x 2350mm
  • Weight 6800Kg
Share with:
  • Product Overview
  • Technical parameters
  • Inquiry

Product Description

Asphalt mixer, also known as asphalt concrete mixer, refers to a complete set of equipment used for mass production of asphalt concrete, which can produce asphalt mixture, modified asphalt mixture, and colored asphalt mixture. It is used to build highways, grade roads, and municipal necessary equipment for roads, airports, and ports.

1.Diesel generator set 2.Hot melt kettle
3.Asphalt Drivetrain 4.Self-locking hoist
5.air pump 6.mixing tank
7.Operation panel 8.No. 1 power motor
9.small burner 10.Large gas turbine
11.Heat transfer oil pump 12.Loading mounting bracket

Featrues
(1) Burner is available for coal and oil.
(2) Operators can observe and modify the relevant data, it is very human.
(3) Mobile operation mode: The whole machine is hoisted on the truck without any modification, and it is carried by the vehicle to the construction site.

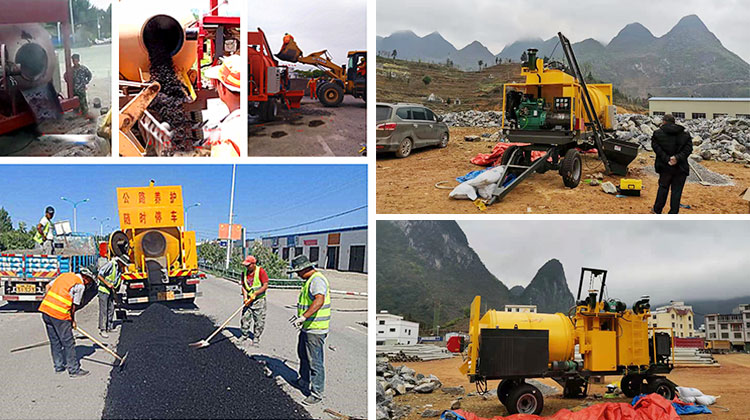

Application



●Used for asphalt pavement pothole repair
●Used for paving colored asphalt pavement
●Used for the recycling of old asphalt
●Used for paving asphalt concrete in small area courtyard

Main Parameters of  XY4-6 Mobile Asphalt Mixer

Model

XY6-9 Mobile Asphalt Mixer

Capacity

1.5 ton/batch,10-15min/times

Insulation roller volume

5M3

Burner

Italy Riello /RG5S

Upper hopper volume

0.35 M3(400KG)

Feeding method: hoisting and unloading

Dust collector

Cyclone and Y9
Centrifugal fan and water dust removal

Generator power

35 KW/TFS-40  Weifang

Asphalt tank volume

900L

Heat transfer oil volume

300L

Actual drum agitating amount

0.9-1 M3

Mixer drum material

Double-layer manganese plate

Mixer drum material thickness

Single layer thickness:5.8MM

Rock wool thickness

5CM

Hot melt kettle

Four layers

Each layer: 5 cm apart

From the inside to the outside: Asphalt oil layer, heat transfer oil layer, fire layer, rock wool layer.

Dual burner

Main burner: type 44

Auxiliary burner: type 40

Discharging temperature

130-170degree (adjustable)

Overall dimension(L*W*H)

6800 x 2300 x 2350mm

Weight

6800Kg

MOQ

1Set

Payment terms

30% TT in advance, balance before delivery

Warranty

12 months

Delivery date

7-10 working days after payment

Validity

30 days


 Technical Parameters

Model

XY6-9 Mobile Asphalt Mixer

Capacity

1.5 ton/batch,10-15min/times

Insulation roller volume

5M3

Burner

Italy Riello /RG5S

Upper hopper volume

0.35 M3(400KG)

Feeding method: hoisting and unloading

Dust collector

Cyclone and Y9
Centrifugal fan and water dust removal

Generator power

35 KW/TFS-40  Weifang

Asphalt tank volume

900L

Heat transfer oil volume

300L

Actual drum agitating amount

0.9-1 M3

Mixer drum material

Double-layer manganese plate

Mixer drum material thickness

Single layer thickness:5.8MM

Rock wool thickness

5CM

Hot melt kettle

Four layers

Each layer: 5 cm apart

From the inside to the outside: Asphalt oil layer, heat transfer oil layer, fire layer, rock wool layer.

Dual burner

Main burner: type 44

Auxiliary burner: type 40

Discharging temperature

130-170degree (adjustable)

Overall dimension(L*W*H)

6800 x 2300 x 2350mm

Weight

6800Kg

MOQ

1Set

Payment terms

30% TT in advance, balance before delivery

Warranty

12 months

Delivery date

7-10 working days after payment

Validity

30 days
