Portable concrete mixer
Information:
The cement mixer,It can be used for mixing plastic and semi-dry concrete.The mixing drum is stirring,turning out the material.It is suitable for construction site,road,bridge engineering and small and medium concrete composition factory without electricity.
Parameter:
| Mode | 2C/4C350 | 2C/4C400 | 2C/4C500 | 4D700 |
| Drum capacity (L) | 350 | 400 | 500 | 700 |
| Mixing capacity (L) | 280 | 320 | 400 | 560 |
| Engine power（HP） | 6 | 6 | 6/10 | 10 |
| Productivity(m³/h) | 4 | 6 | 8 | 10 |
| Bags of cement (50kg/bag) | 1bag | 1 bag | 1.5 bag | 2 bag |
| Drum rotation (rpm) | 25-30 | 25-30 | 25-30 | 25-30 |
| Drum thickness (mm) | 3 | 3 | 3 | 3 |
| Drum size(mm) | Φ800*900 | Φ850*900 | Φ800*900 | Φ950*1050 |
| Overall size(mm) | 1960*1100*1700 | 2060*1200*1700 | 2160*1200*1700 | 2200*1500*1850 |
| Packing size(mm) | 1860*860*1100 | 1960*960*1200 | 2060*1060*1250 | 2100*1060*1350 |
| Weight (kg) | 260/280 | 290/310 | 310/330 | 480 |
| Engine option | Motor can be charge on request:Gasoline、Diesel、Electric | |||
Details:

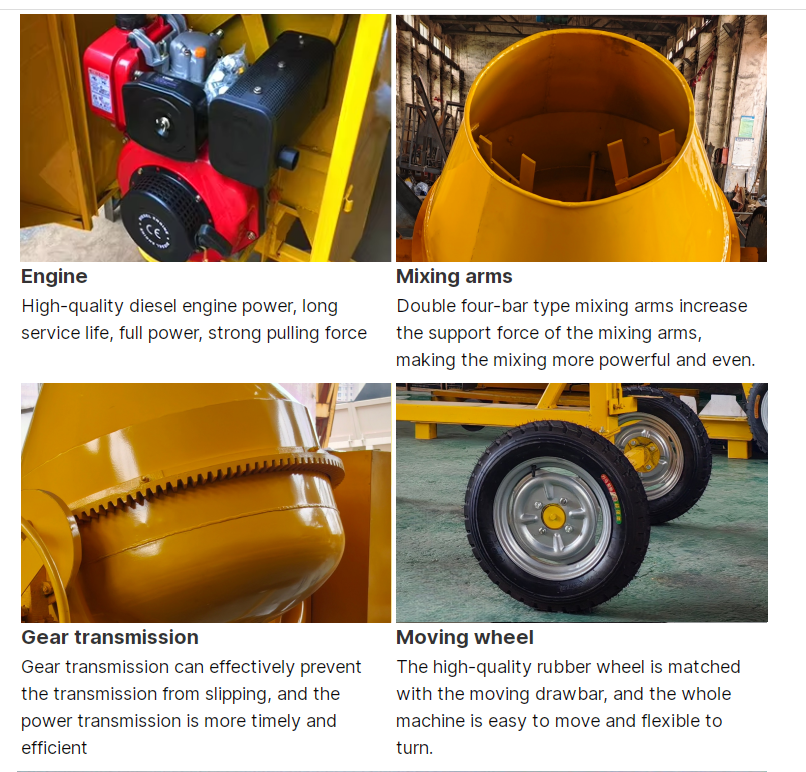

Features:
1.Portable with 2 or 4 wheels for easy movement with traction rod.
2.Steering wheel for easy material charging and concrete discharging.
3.Diesel engine or electric motor can be equipped according to your need.
4.Drum size from 350-700L can be customized.
