JS1000 concrete mixer
  • JS1000 concrete mixer

JS1000 concrete mixer machine

  • Theoretical capacity60m3/h
  • Rated charging volume1600L
  • Rated charging volume1000L
  • Hopper lifting speed18m/min
  • Max.aggregate size≤80mm
  • Lifting motor power13kw
  • Mixing motor power37kw
  • Rotary speed of mixing shaftRotary speed of mixing shaft
Share with:
  • Product Overview
  • Technical parameters
  • Inquiry

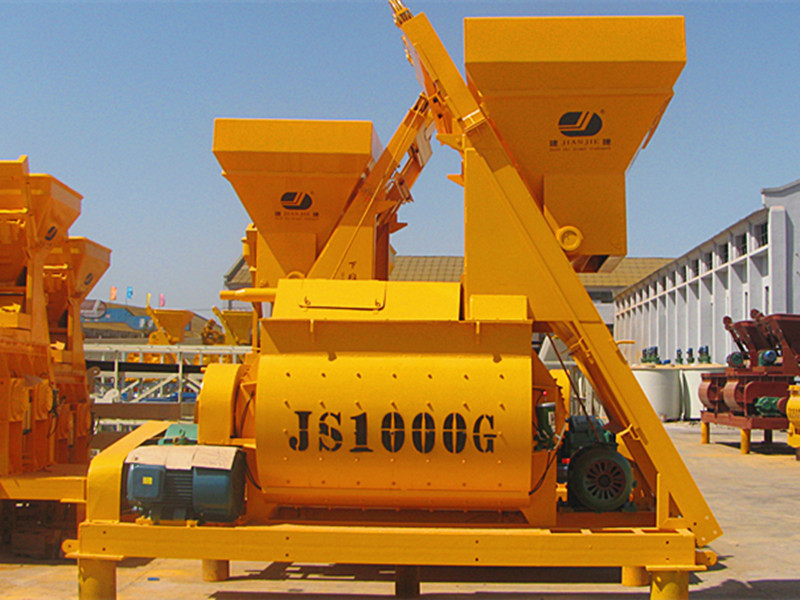

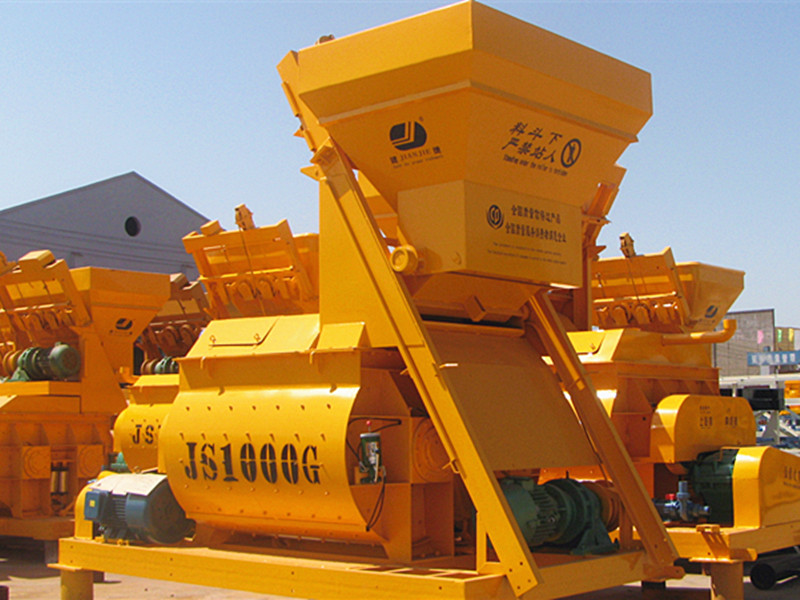

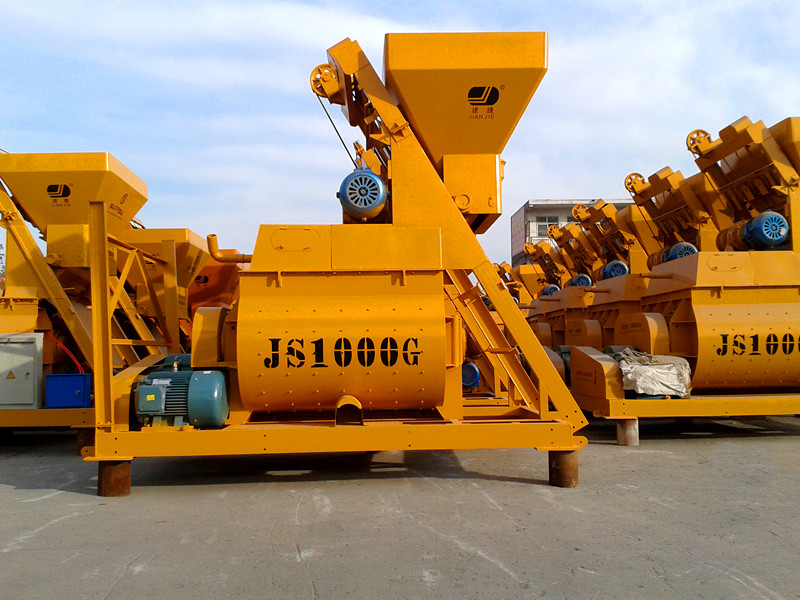

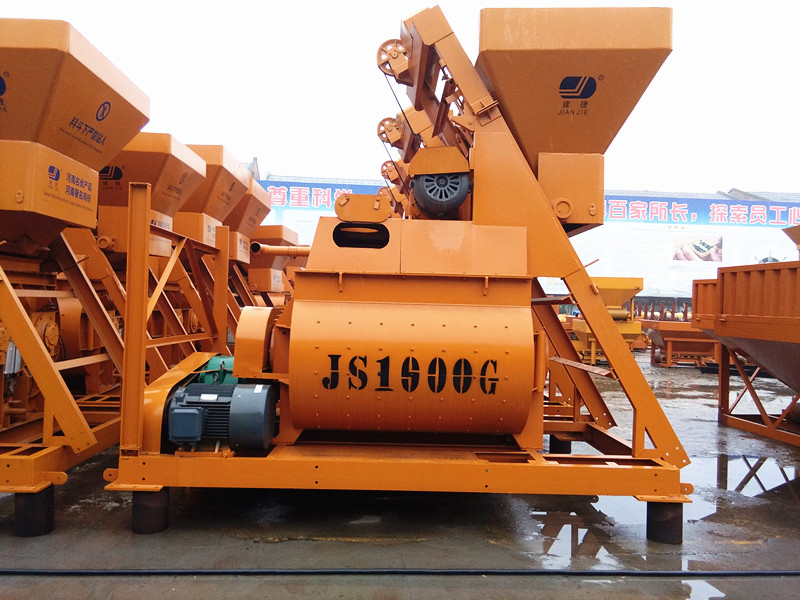

   JS1000-Two shaft concrete mixer



Product Description





Shaft forced type, increase the quality of the concrete and efficiency.Liner plate is made of high quality chromium, harder and longer lasting.Reinforced body frame ,make machine securely in position.





Additional two Limited-Switchs for running safetyBrand name electrical parts ,machine running more smoothly.



Can be modified upon request,such as expend the tracks or increase unloading height.






  Parameters

Condition:
New
Place of Origin:
Henan China (Mainland)
Brand Name:
JIANJIE
Model Number:
JS1000
Motor Power:
380V
Mixing Power:
37kw
Charging Capacity:
1600L
Reclaiming capacity:
1000L
Water Supply Mode:
pump
Discharge Way:
Twin-shaft compulsory
Outline Dimension:
3420*2370*2500
After-sales Service Provided:
Engineers available to
service machinery overseas
charge capacity:
1600L
Power:
380V/50Hz
Total weight:
7200kg
Productivity:
60m³/h
Discharge Capacity:
1000L
Pump power:
1.1kw
Power of Lifting Electromotor:
1.1kw
Power of Mixing Electricmotor:
18.5k
  Application



Concrete mixer can offer matched main engine for mixing plants applicable to various sizes of precast plant as well as industrial and civil construction works roads,bridges,water works,and harbors.



Packaging & Delivery

Packaging Detail: plywooden box
Delivery Detail: within 5-10 days

Company Introduction

Zhengzhou Xinyu Machinery Manufacturing Co., Ltd. is a professional mixing equipmentmanufacture which has thirty years of technology accumulation in China. Under our company longrun technology research and development and all the staff and tireless effort, our company creates our unique self-own brand
JIANJIE. Nowadays, our products are exported to more than 30 countries and regions with excellent quality, such as Eastern Europe, Southeast Asia, South America, Africa and Oceania and so on.


Parameter:
Theoretical capacity: 60m3/h
Rated charging volume: 1600L
Rated discharging volume: 1000L
Hopper lifting speed: 18m/min
Max.aggregate size: ≤80mm
Lifting motor power: 13kw
Mixing motor power: 37kw
Rotary speed of mixing shaft: 26rpm
Working period: 45s
Discharging way: manual/pneumatic
Overall size: 3580mm×2150mm×3570mm
