JS750 concrete mixer
  • JS750 concrete mixer

JS750 concrete mixer machine

  • Theoretical capacity35m3/h
  • Rated charging volume1200L
  • Rated discharging volume750L
  • Hopper lifting speed18m/min
  • Max.aggregate size≤80mm
  • Lifting motor power7.5kw
  • Mixing motor power30kw
  • Rotary speed of mixing shaft28rpm
Share with:
  • Product Overview
  • Technical parameters
  • Inquiry


Product Description

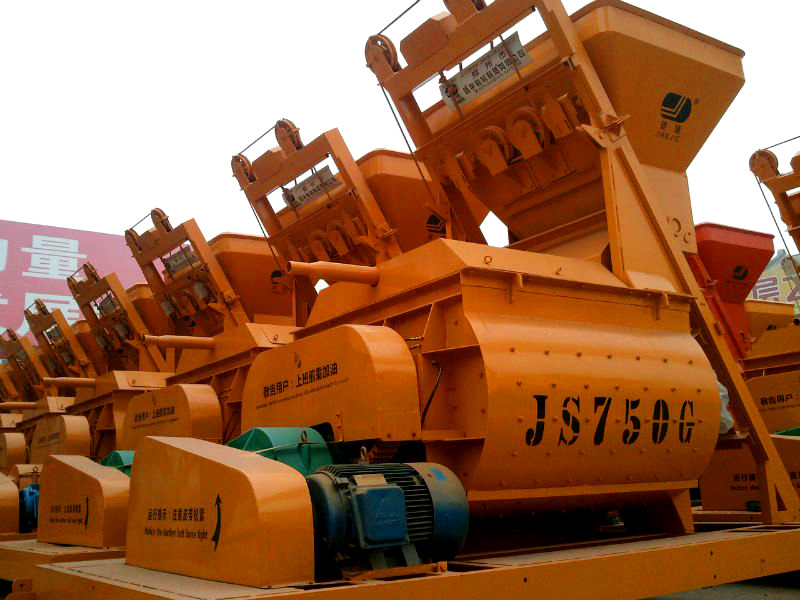

JS750 Twin Shaft Compulsory Concrete Cement Mixer


Introduction

JS series concrete mixer is twin shaft compulsory concrete mixer, which canmixsubarid rigid concrete, plastic concrete, flow ability concrete, light aggregateconcrete and various mortar. Drum sets with wear resistant cast liner and mixing blade, which is durable and easy to replace. Once JS series concrete mixer is combined with various models batching machine, batching plant will come into being, which applies to various kinds of large and medium scale prefabricated factories and all kinds of construction sites, road, bridge, airports, tunnels and other projects.



Parameters

JS750 Concrete Mixer
Feeding Capacity  1200L
Discharging Capacity  750L
Productivity   ≥35m3/h
Mixing Motor Power  30kw
Lifting Motor Power   7.5kw
Water Pump Motor   1.1kw
Max Diameter of Aggregate   60/80mm
Stirring Time   30-35s
Weight  4500kg
Overall Dimensional(L*W*H) Transport status  3650*2200*2560mm
Work status  4600*4500*5800mm

View of details
Js750 Twin Shaft Compulsory Concrete Cement Mixer

Packing&Shipping
Js750 Twin Shaft Compulsory Concrete Cement Mixer



Parameter:
Theoretical capacity: 35m3/h
Rated charging volume: 1200L
Rated discharging volume: 750L
Hopper lifting speed: 18m/min
Max.aggregate size: ≤80mm
Lifting motor power: 7.5kw
Mixing motor power: 30kw
Rotary speed of mixing shaft: 28rpm
Working period: 45s
Discharging way: manual/pneumatic
Overall dimensions: 3580mm×2150mm×3370mm
