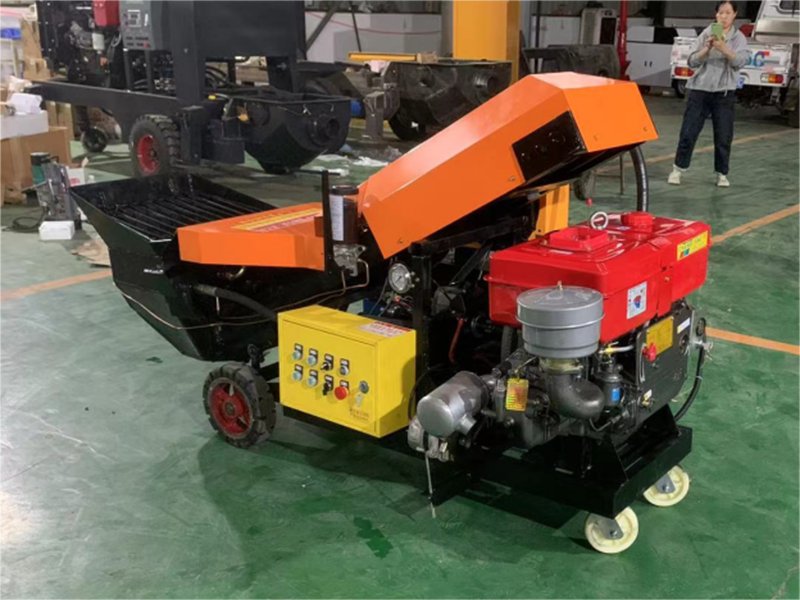

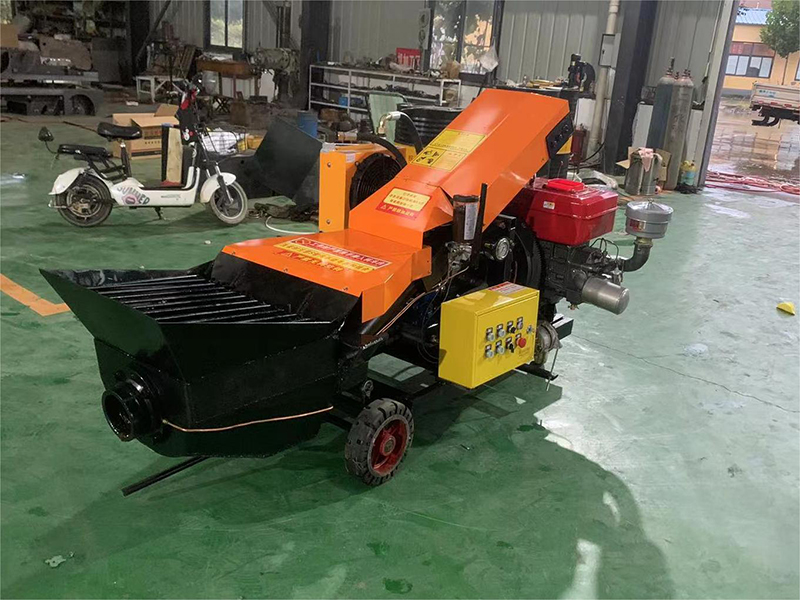

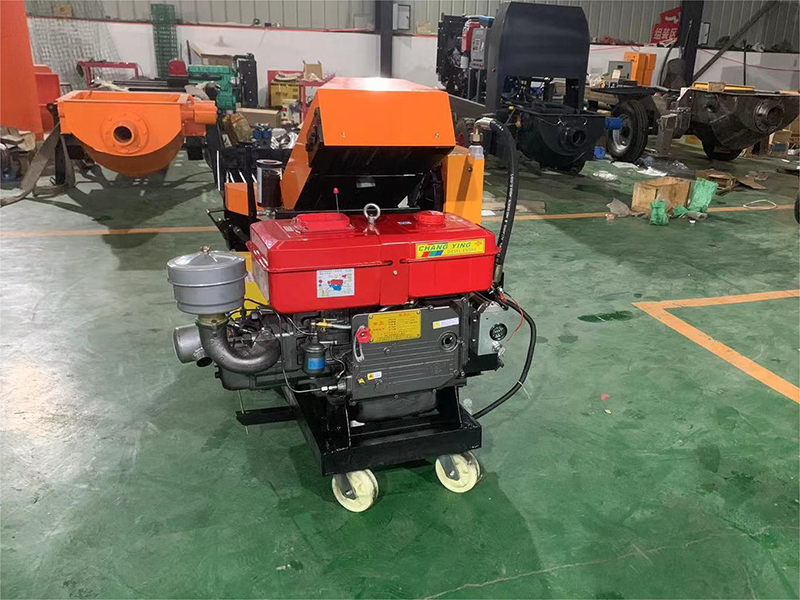

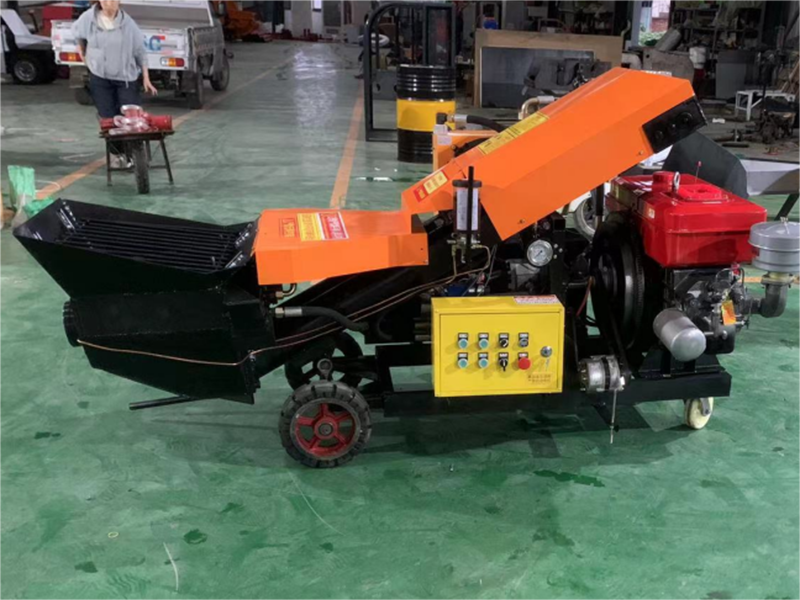

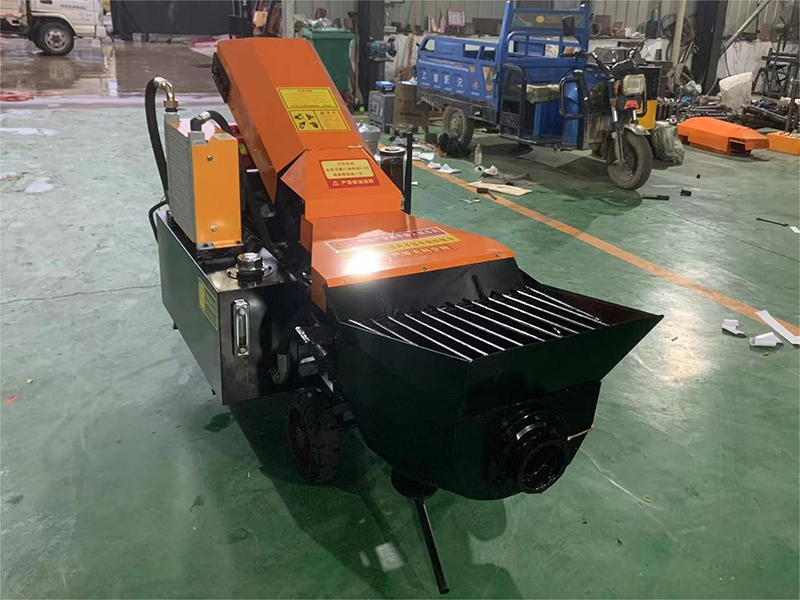

Mini diesel concrete pump

  • Max. Theoretical Concrete Output7m³/h
  • Mortar power25hp
  • Max.Theoretical Conveying Distance (Horizontal Distance/Vertical Height)60/20m
  • Concrete Cylinder DiameterΦ150×800mm
  • Maximum aggregate size30mm
  • Pipe diameter 80mm
  • Dimension2500*900*1250mm
  • Total Weight550kg
Share with:
  • Product Overview
  • Technical parameters
  • Inquiry

1.Introduction:

Concrete pump is a kind of composite pumping requirements of concrete pump, through the horizontal or vertical
installation of pipelines, the scene of the continuous conveying to the pouring fine stone concrete conveying
equipment, widely used in the second post filling, floor heating engineering, roofing, wall of high-rise building,
reservoir and hydropower station, port, wharf, basic processing soft foundation reinforcement grouting subway
tunnel backfill grouting bolt support in mine construction.

2.Specification:

Item

Unit

A type

B type

Max. Theoretical Concrete Output

m³/h

7

7

Mortar power

hp

25

25

Distribution valve



S Valve

S Valve

Max.Theoretical Conveying Distance (Horizontal Distance/Vertical Height)



m



60/20



30/15

Concrete Cylinder Diameter

mm

Φ150×800

Φ140×700

Maximum aggregate size

mm

30

20

Pipe diameter

mm

80

80

Dimension

mm

2500*900*1250

1950*780*1200

Hopper height

mm

500

500

Working pressure

mpa

5-15

5-15

Oil tank capacity

L

30

30

Maximum pressure; Pressure of work

Mpa

15 ; 5

15 ; 5

Total Weight

kg

550

500

3.Main Features:

1. Main material cylinder lengthening, use heavy steel. Ensure pumping capacity.

2. Wear plate adopts wear resistant alloy material, longer service life.

3.  Adopts advanced electrics system and good electrics, ensure the machine working well

4. Hopper height adjustable up down,small concrete truck can directly poured into the hopper.

5. Hopper height adjustable up down,small concrete truck can directly poured into the hopper.

Specification:

Item

Unit

A type

B type

Max. Theoretical Concrete Output

m³/h

7

7

Mortar power

hp

25

25

Distribution valve



S Valve

S Valve

Max.Theoretical Conveying Distance (Horizontal Distance/Vertical Height)



m



60/20



30/15

Concrete Cylinder Diameter

mm

Φ150×800

Φ14700

Maximum aggregate size

mm

30

20

Pipe diameter

mm

80

80

Dimension

mm

2500*900*1250

1950*780*1200

Hopper height

mm

500

500

Working pressure

mpa

5-15

5-15

Oil tank capacity

L

30

30

Maximum pressure; Pressure of work

Mpa

15 ; 5

15 ; 5

Total Weight

kg

550

500
