XY214 / XY212 / XY210 / XY208 series road roller

  • Operating mass14000/12000/10000/8000 Kg
  • Front axle load7000/6000/5000/4000 Kg
  • Rear axle load7000/6000/5000/4000 Kg
  • Static linear load333/286/238/231 N/cm
  • Water tank capacity2×600/2×600/2×400/2×400 L
Share with:
  • Product Overview
  • Technical parameters
  • Inquiry


Description
:

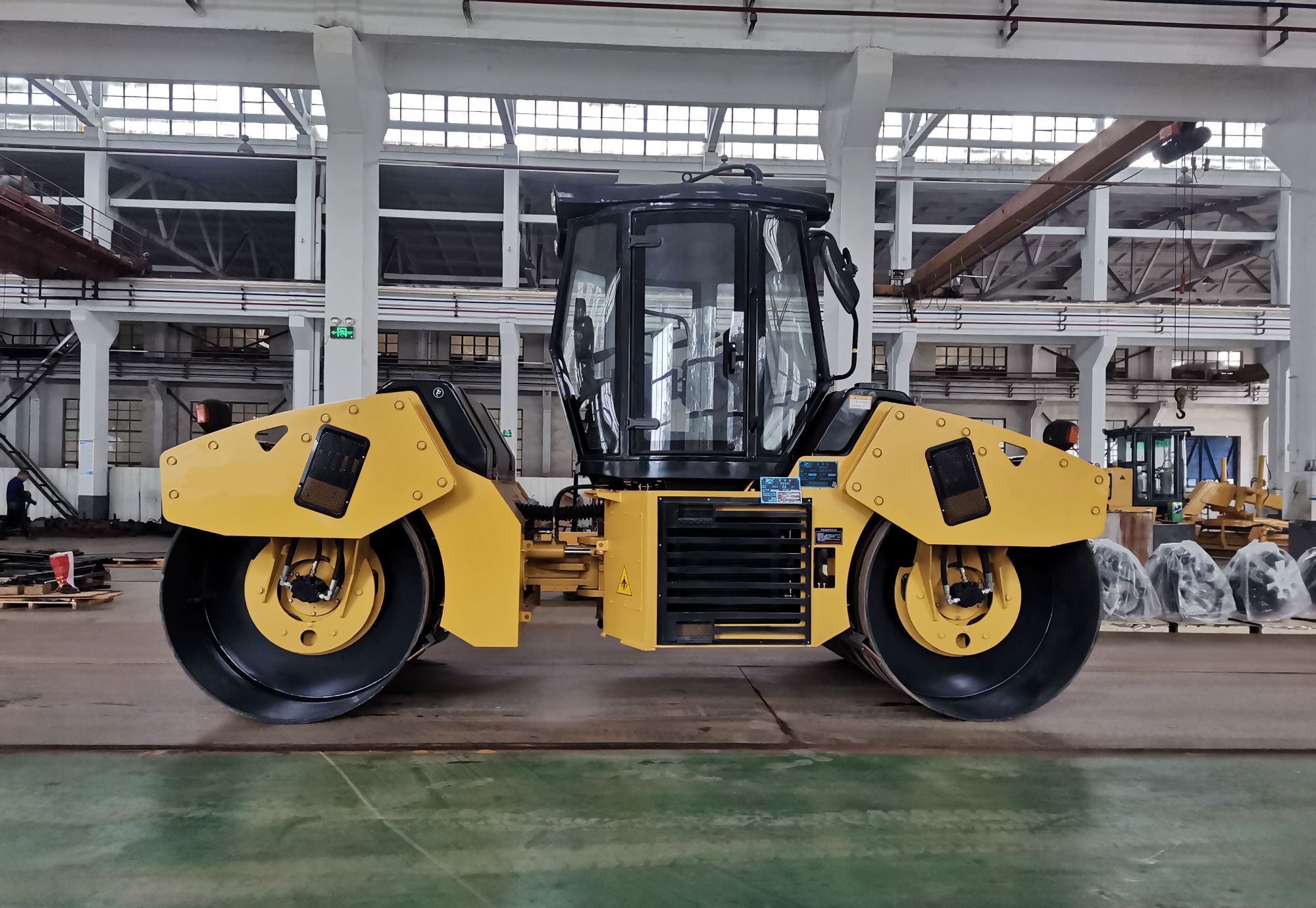

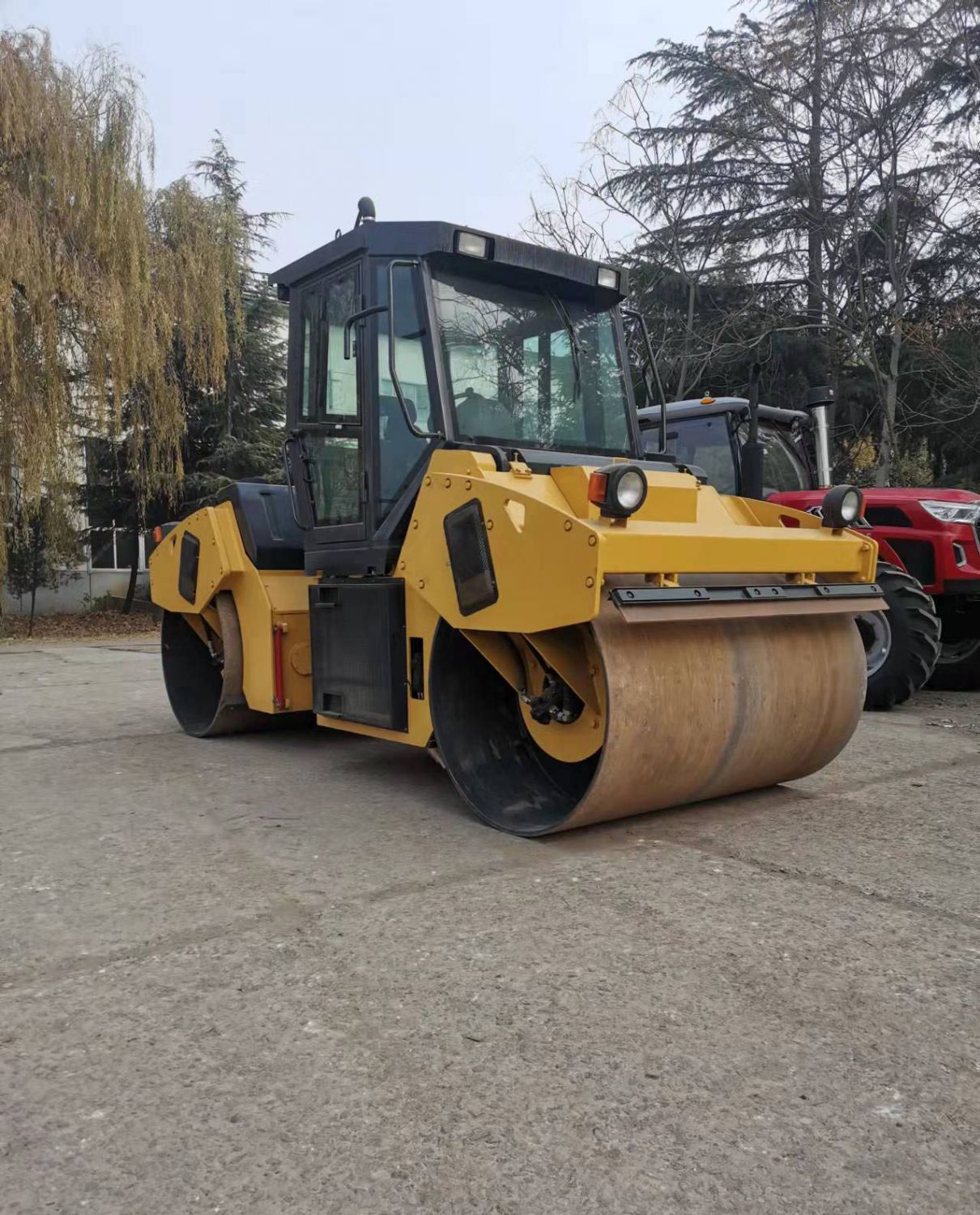

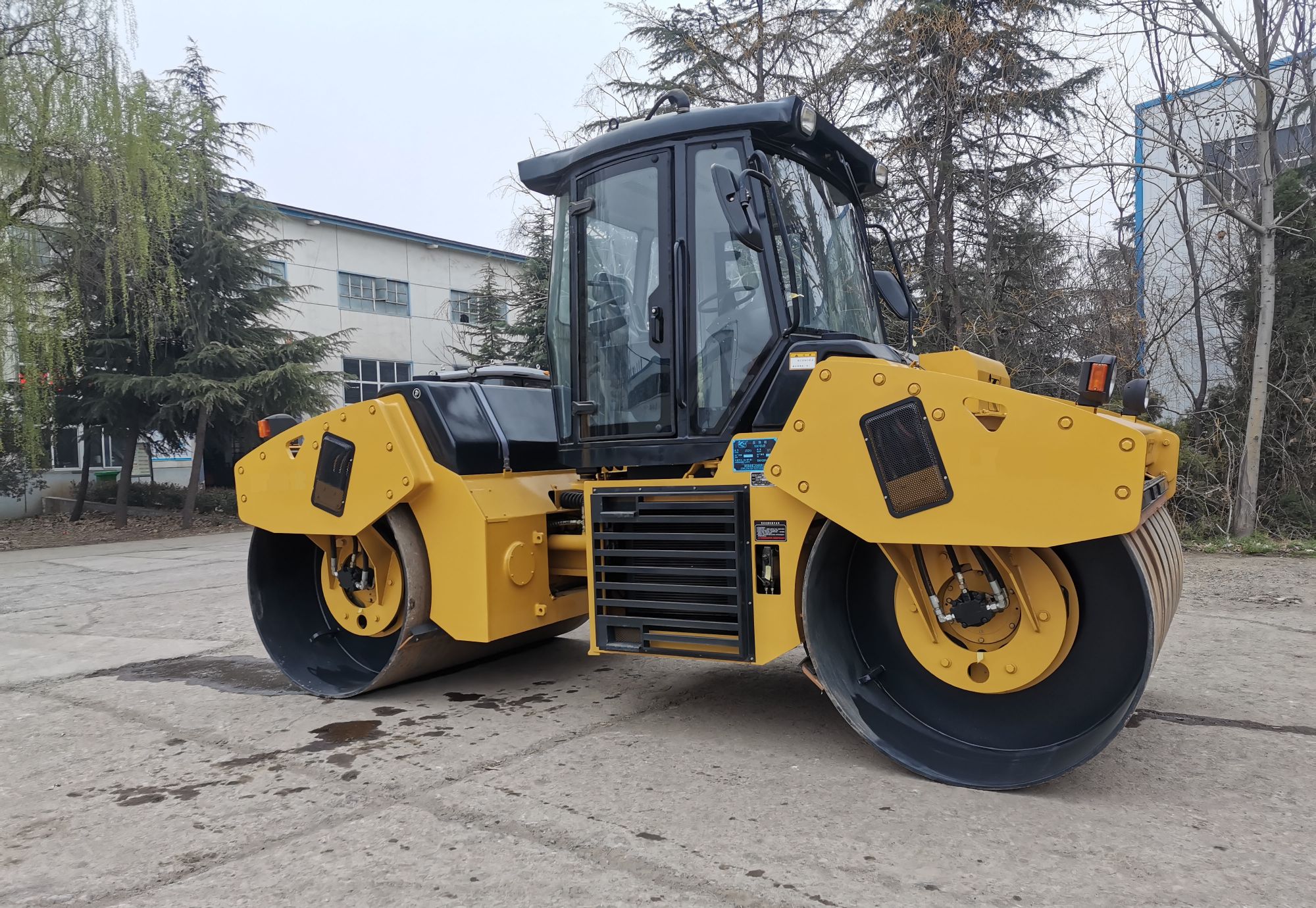

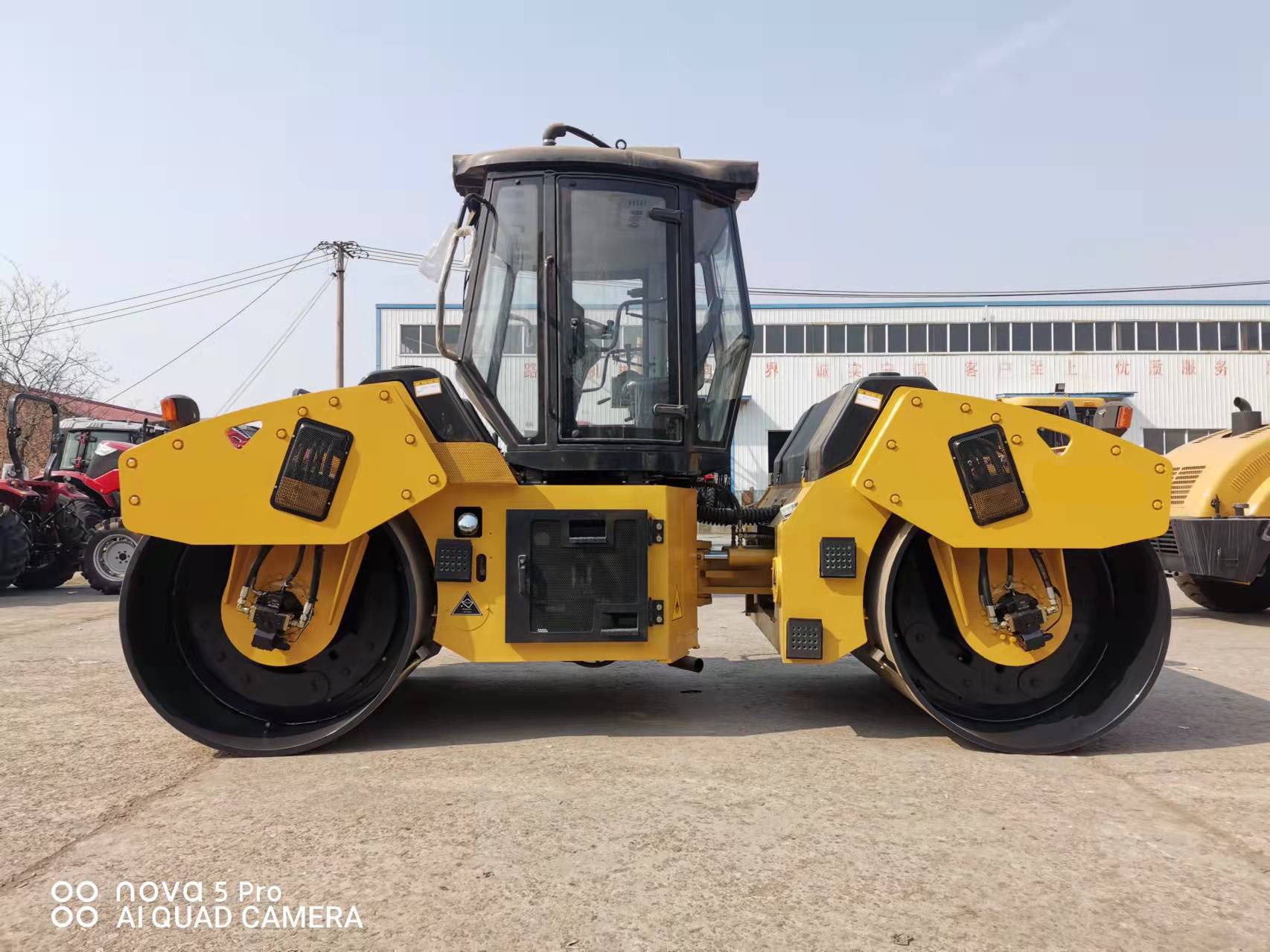

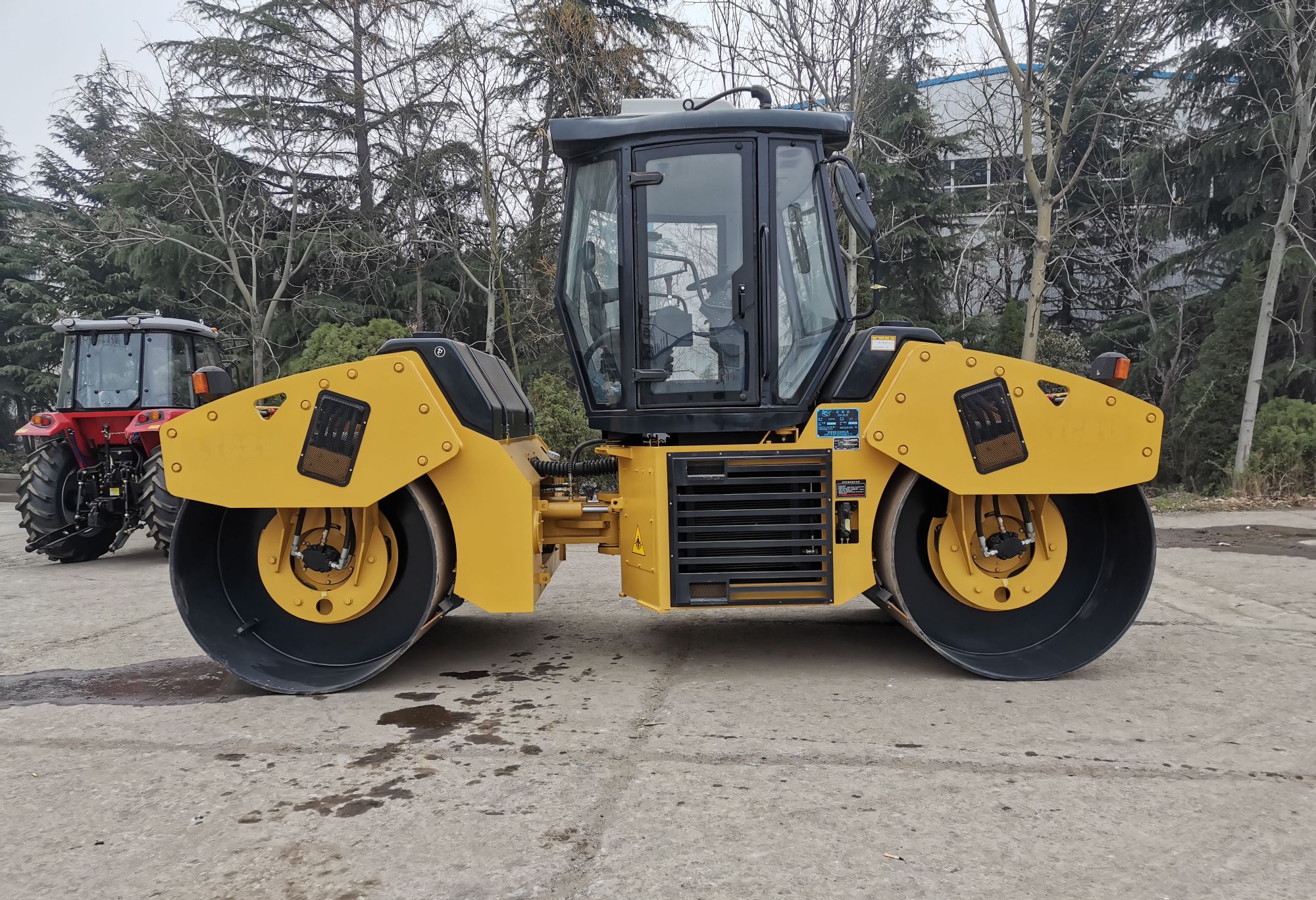

XY214、XY212、XY210、XY208 Hydraulic vibratory rollers are manufactured according to international advanced technology and by use of imported components from abroad. The machine is a double drum tandem vibratory roller,It is Primarily used for the compaction of road bituminous course,sand gravel mixtures and RCC material,Being a universal compaction equipment for highway,municipal road,park area and industry ground etc.

Main Features:
▲Full hydraulic two wheel drive and vibration.
▲Double frequency double vibration system.
▲Hydro static center articulated steering,Optional unique crab agency.
▲Cabin with air conditioner,comfortable and spacious,the flexible steering seat facilitate the operation.
▲The driver's cabin can be turned on one side as a whole, to facilitate machinate.
▲Fork-type frame,good hold-down property.
▲Hydraulic pump and vibrating motors are of the products made by American manufacturer SAUER or German manufacturer REXROTH.


Main technical parameters

MODLE



XY214
XY212

XY210
XY208

Operating mass

kg

14000/12000

10000/8000

Front axle load

kg

7000/6000

5000/4000

Rear axle load

kg

7000/6000

5000/4000

Static linear load

N/cm

333/286

238/231

Form of frame



Fork-type(叉脚式)

Fork-type(叉脚式)

Water tank capacity

L

2×600

2×400

Fuel tank capacity

L

154

80

Hydraulic tank capacity

L

65

65

Vibration frequency

mm





High ampl.



0.8

0.67

Low ampl.



0.4

0.34

Vibration frequency

Hz





High ampl.



40

45

Low ampl.



46

50

Centrifugal force

kN





High ampl.



160×2

90×2

Low ampl.



90×2

69×2

Travel speed

km/h

0-12

0-10

Turning radius

mm

7000

6000

Grade ability

%

40

40

Steering angle

°

±30

±30

Drum diameter

mm

1350

1150

Drum width

mm

2100

1730

Transverse swing angle of the vibrating wheel

°

±8

±8

Type of water spray

mm

Pressure

Pressure

Wheelbase

mm

3717

3217

Overall length

mm

5060

4558

Overall width

mm

2250

1840

Overall height

mm

3300

2674

Ground clearance

mm

324

258

Diesel model



康明斯 6BT5.9

康明斯 4BT3.9

Diesel power

kw

110

75

Diesel speed

r/min

2300

2400
