JBT30 concrete mixer with pump

  • Max. theoretical concrete output15m3/h
  • Max. theoretical concrete pumping capacity30m3/h
  • Theoretical maximum pumping pressure6Mpa
  • Duct diameter180mm
  • Theoretical maximum transmission distance horizontal / vertical200/70m
  • Concrete Bore × stroke180/1000mm
  • Pump motor power30KW
  • Mixing motor power3*2kw
  • Product Overview
  • Technical parameters
  • Inquiry

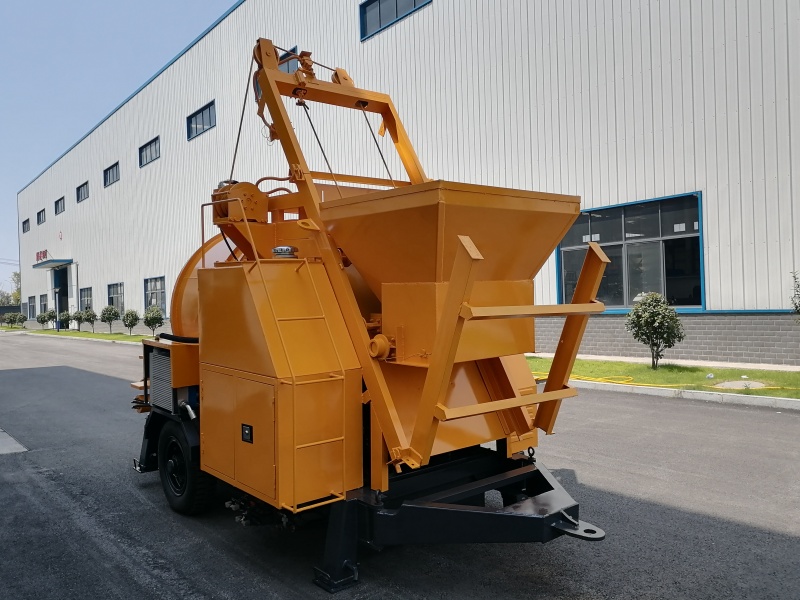

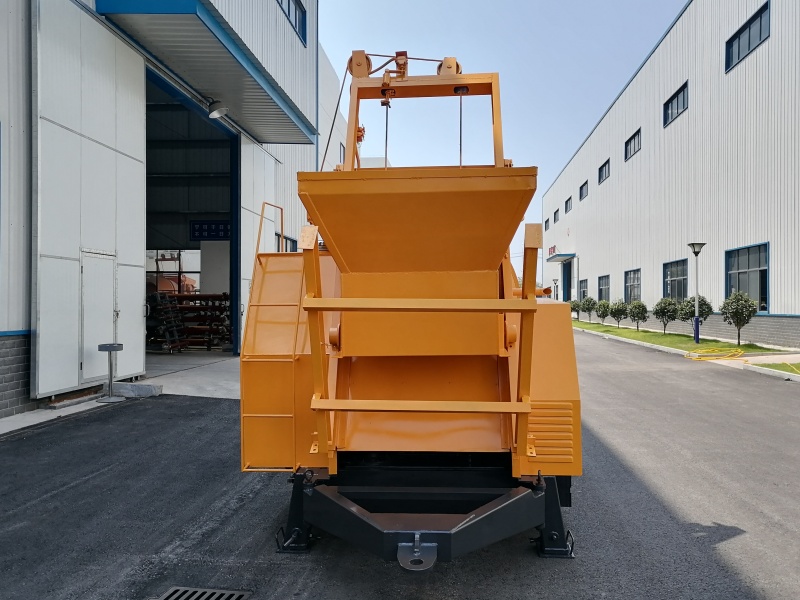

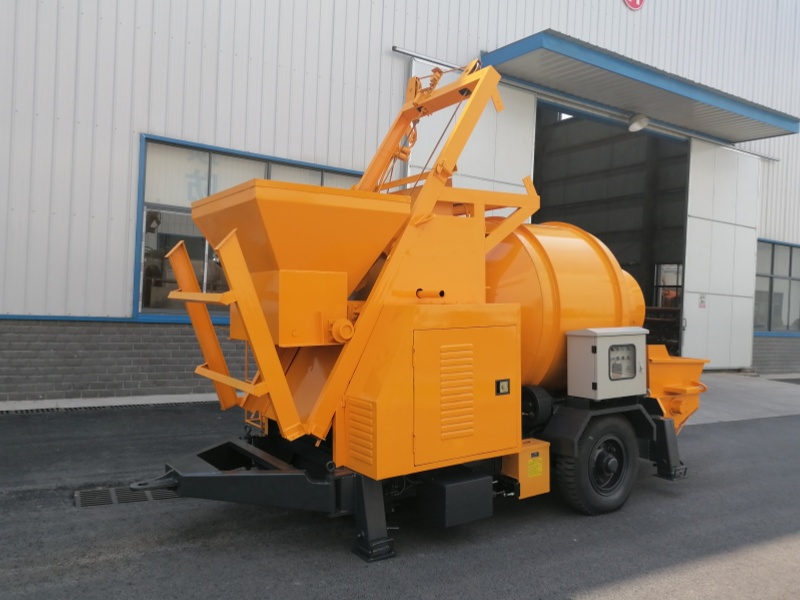

JBT30 mobile concrete pump with mixer

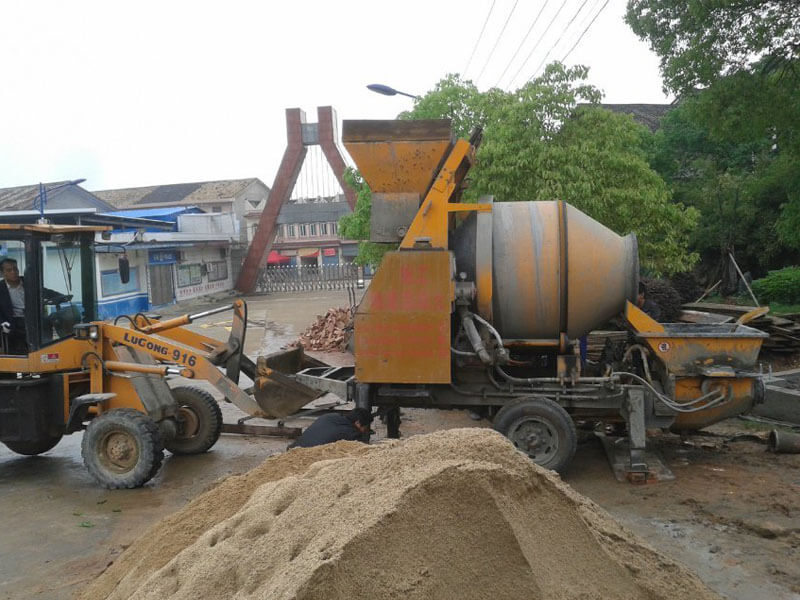

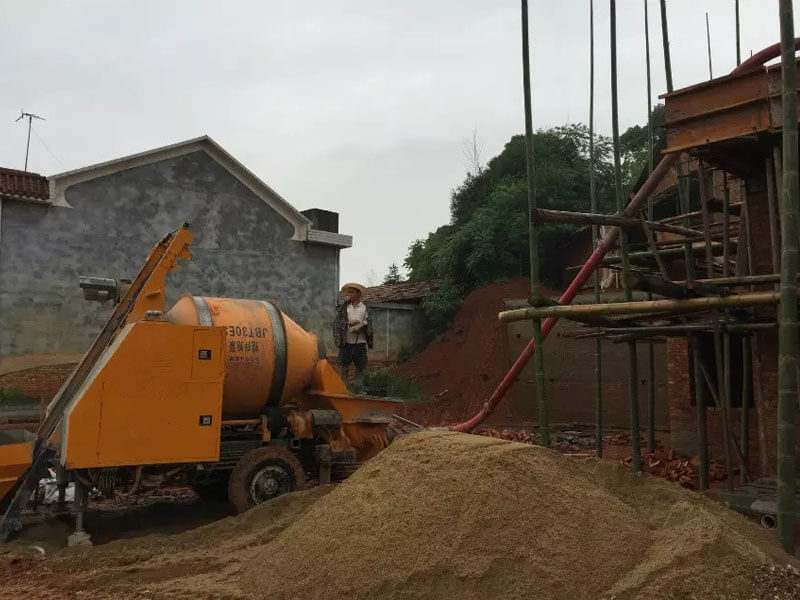

JBT30 concrete mixer pump is the newest products patented by our company, it is combined by thetraditional concrete pump and the mixer together, it is the most suitable used in four to six floor buildings,especially in the group buildings, bridges, and the spread of small construction sits where need theconcrete mixer at the scene.


Specification of porle concrete mixer and pump

Item

JBT30

Max. theoretical concrete output

15m3/h

Max. theoretical concrete pumping capacity

30m3/h

Theoretical maximum pumping pressure

6Mpa

The form of distribution valve

The S tube placed valve

Duct diameter

180mm

Theoretical maximum transmission distance horizontal / vertical

200/70m

Concrete Bore × stroke

180/1000mm

The hopper volume / Feeding height

0.6/1080m3/h

Maximum aggregate size

Pebble: 40 gravel:30   mm

Pump motor power

30kw

Mixing motor power

3×2kw

Winch motor power

4.5kw

Water pump motor power

0.55kw

Rated speed

1480Rpm

Voltage / frequency

380V

Fuel tank capacity

170L

Dimensions (L × W × H)

4370x2100x2580 mm

Weight

3500kg




Features

1. New combination of concrete pump and concrete mixer.
2.Double cylinder hydraulic pumping system, hydraulic system greatly enhance the the stirring
 Concrete pump overall reliability ensure pump strive foolproof work under harsh conditions
3.The pump construction operation system used in all automated, all material mixing, high pressure pumping.


Item

JBT30

Max. theoretical concrete output

15m3/h

Max. theoretical concrete pumping capacity

30m3/h

Theoretical maximum pumping pressure

6Mpa

The form of distribution valve

The S tube placed valve

Duct diameter

180mm

Theoretical maximum transmission distance horizontal / vertical

200/70m

Concrete Bore × stroke

180/1000mm

The hopper volume / Feeding height

0.6/1080m3/h

Maximum aggregate size

Pebble: 40 gravel:30   mm

Pump motor power

30kw

Mixing motor power

3×2kw

Winch motor power

4.5kw

Water pump motor power

0.55kw

Rated speed

1480Rpm

Voltage / frequency

380V

Fuel tank capacity

170L

Dimensions (L × W × H)

4370x2100x2580 mm

Weight

3500kg
