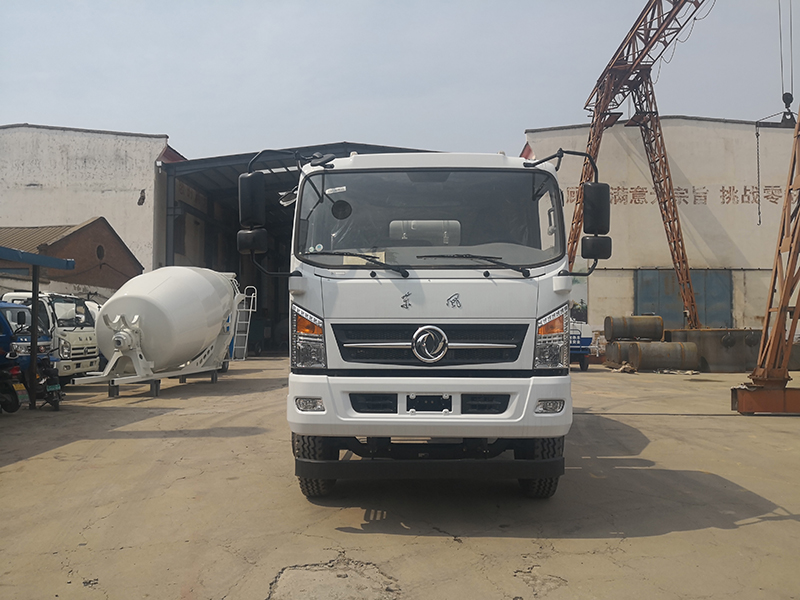

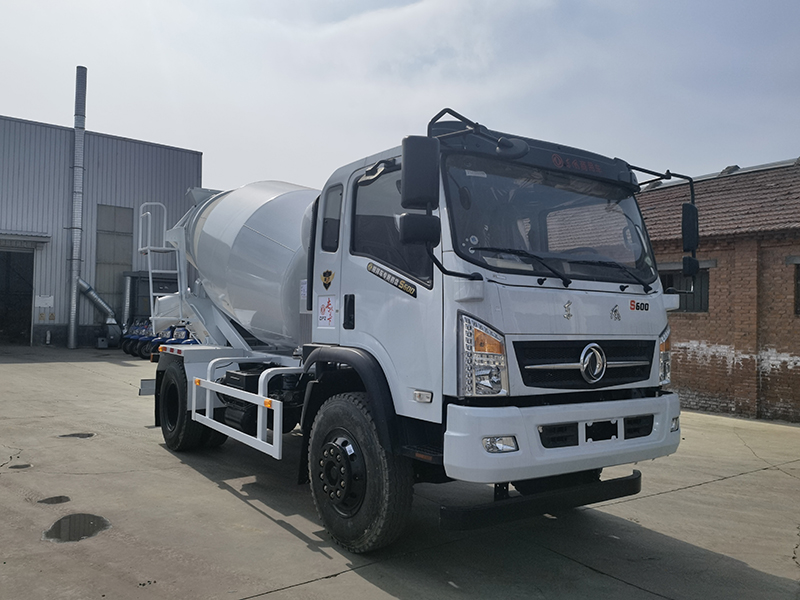

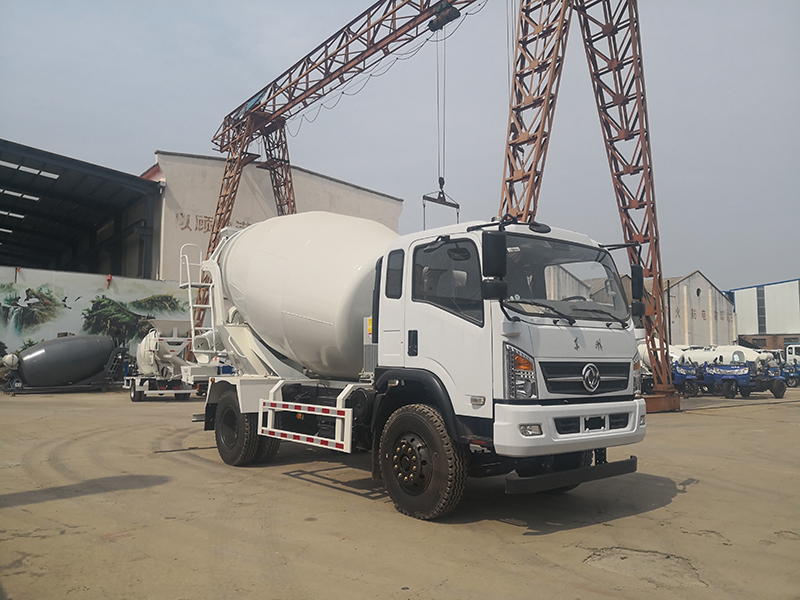

3 CBM concrete mixing truck

modelJC3m³-D
the dimension of bottom machinery(L*W*H)（mm）3200*860 *120
nominal mixing capacity of tank3m³
geomerical volume of tank5.5m³
coefficient of loading ration0.545
drum roating speed0-14rpm
inlet height(mm)2072
inclinated angle of discharge duct45º

Product Overview
Technical parameters
Inquiry

1.Description of 3 CBM Concrete Mixer Truck for Sale in China

3 CBM concrete mixing truck is a new product ,it is economical and practical, with convenient operation, uniform mixing and stable performance, and is suitable for bridge, tunnel, highway and urban & rural construction.

2.Feature of 3 CBM Concrete Mixer Truck for Sale in China

1. The hydraulic system adopts Germany Rexroth, Italy ARK, America Sauer;

2. Double screw blades make sure the concrete mix very thoroughly and continuous discharge and not segregation;
3. The mixing drum is made from the special close grain high-hardness steel plate B520JJ which is produced by Shanghai Baosteel and its service life can last 8-10 years;
4. With the minor angle inclination, the gravity of the whole truck is low and stable;
5. Equipped with the large diameter hopper, it can realize the quickly feeding, not plugging and spilling, and it is easy to clean;
6. With the discharge downspouting to pave the way for the quick and clean discharging;
7. The optimized design of mixing drum and no dead angles to ensure the concrete residue ratio is less than 1%;
8. With the pedal, security barrier and anti-skid design to ensure personal safety;

3.Main parameters of JC3m3-D samll concrete mixer truck

model	JC3m³-D	JC4m³-D	JC6m³-D	JC8m³-D	JC8m³	JC10m³	JC12m³
the dimension of bottom machinery(LWH)(mm)	3200860 120	3600860 120	4430860 140	4900860 160	4900860 140	5580860 140	6100860 140
nominal mixing capacity of tank	3m³	4m³	6m³	8m³	8m³	10m³	12m³
geomerical volume of tank	5.5m³	6.8m³	9.6m³	13.4m³	13.4m³	16.4m³	19m³
coefficient of loading ration	0.545	0.588	0.625	0.545	0.545	0.61	0.63
drum roating speed	0-14rpm	0-14rpm	0-14rpm	0-12.5rpm	0-14rpm	0-14rpm	0-14rpm
inclinated angle of mixing tank axial line	16º±15´	16º±15´	15º±15´	15º±15´	15º±15´	11º±15´	11º±15´
inlet height(mm)	2072	2250-2350	2446	2552	2552	2716	2750
inclinated angle of discharge duct	45º	45º	45º	45º	45º	45º	45º
dumping direction of discharge duct	180º	180º	180º	180º	180º	180º	180º
the concrete slump that is suitable for conveying	40-210	40-210	40-210	40-210	40-210	40-210	40-210
residual rate	<1%	<1%	<1%	<1%	<1%	<1%	<1%
water tank capacity	180L	180L	180L	180L	180L	180L	180L

Main parameters of JC3m3-D samll concrete mixer truck

model	JC3m³-D	JC4m³-D	JC6m³-D	JC8m³-D	JC8m³	JC10m³	JC12m³
the dimension of bottom machinery(LWH)(mm)	3200860 120	3600860 120	4430860 140	4900860 160	4900860 140	5580860 140	6100860 140
nominal mixing capacity of tank	3m³	4m³	6m³	8m³	8m³	10m³	12m³
geomerical volume of tank	5.5m³	6.8m³	9.6m³	13.4m³	13.4m³	16.4m³	19m³
coefficient of loading ration	0.545	0.588	0.625	0.545	0.545	0.61	0.63
drum roating speed	0-14rpm	0-14rpm	0-14rpm	0-12.5rpm	0-14rpm	0-14rpm	0-14rpm
inclinated angle of mixing tank axial line	16º±15´	16º±15´	15º±15´	15º±15´	15º±15´	11º±15´	11º±15´
inlet height(mm)	2072	2250-2350	2446	2552	2552	2716	2750
inclinated angle of discharge duct	45º	45º	45º	45º	45º	45º	45º
dumping direction of discharge duct	180º	180º	180º	180º	180º	180º	180º
the concrete slump that is suitable for conveying	40-210	40-210	40-210	40-210	40-210	40-210	40-210
residual rate	<1%	<1%	<1%	<1%	<1%	<1%	<1%
water tank capacity	180L	180L	180L	180L	180L	180L	180L
