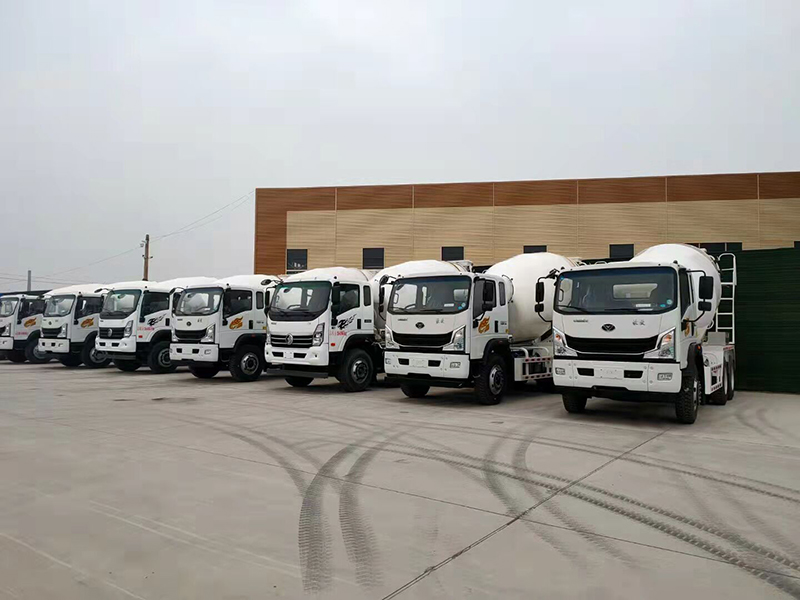

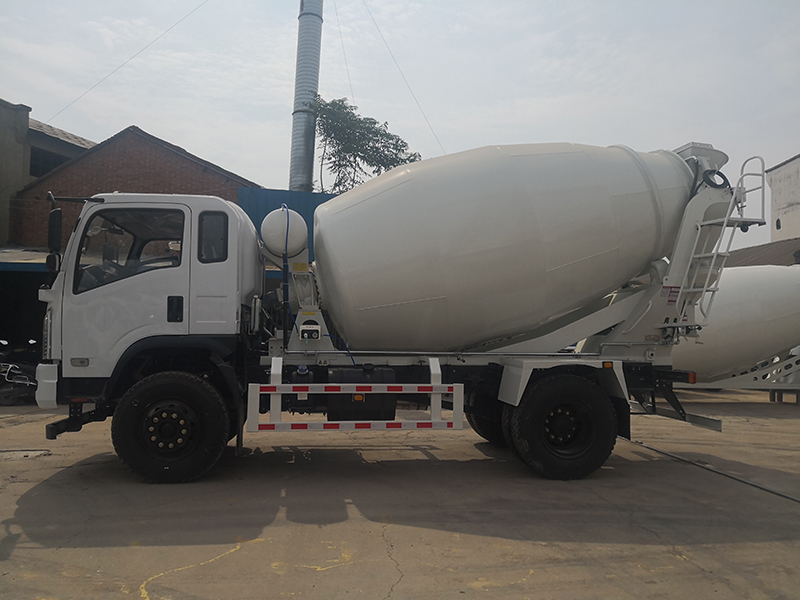

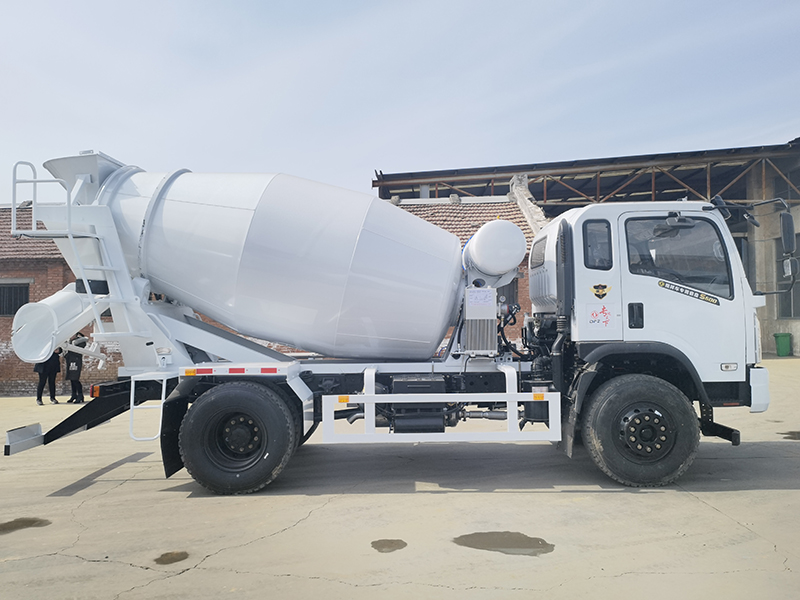

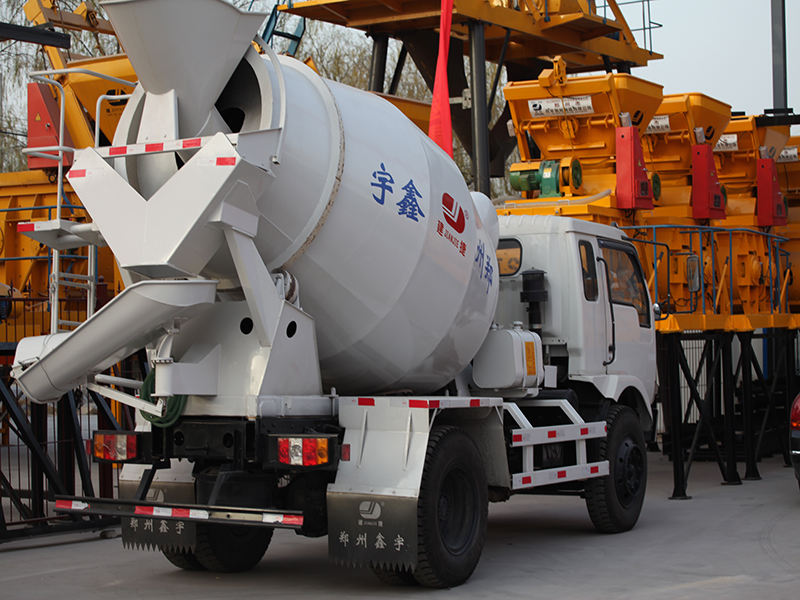

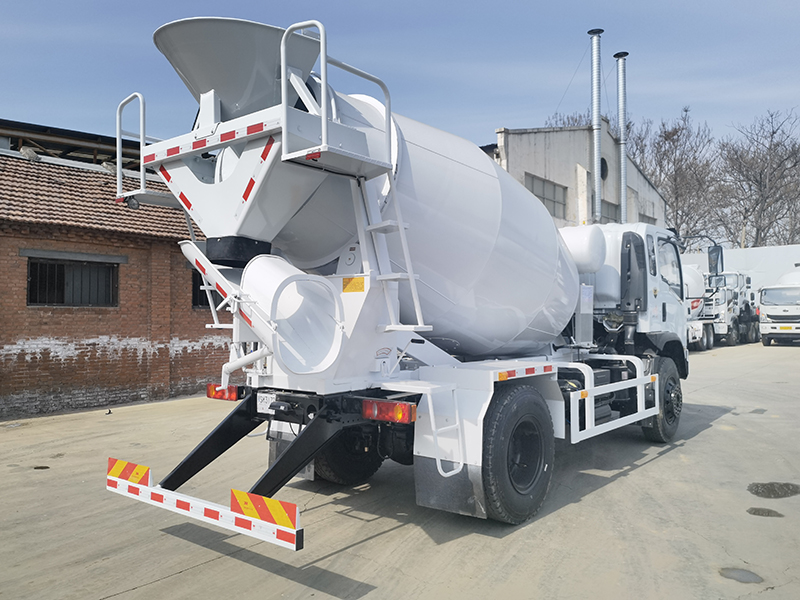

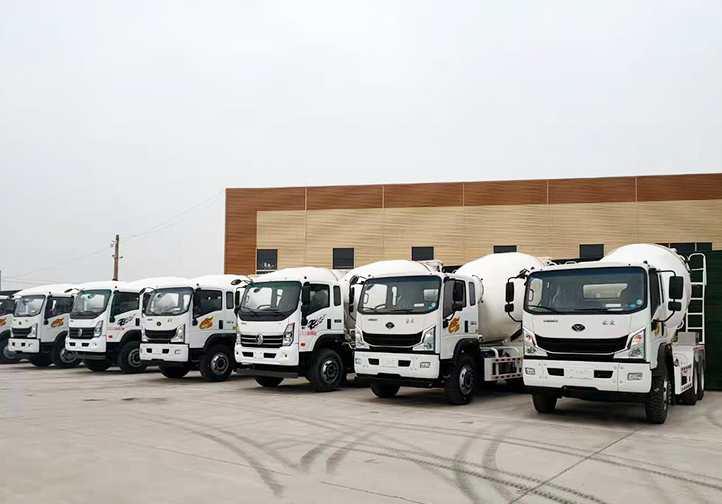

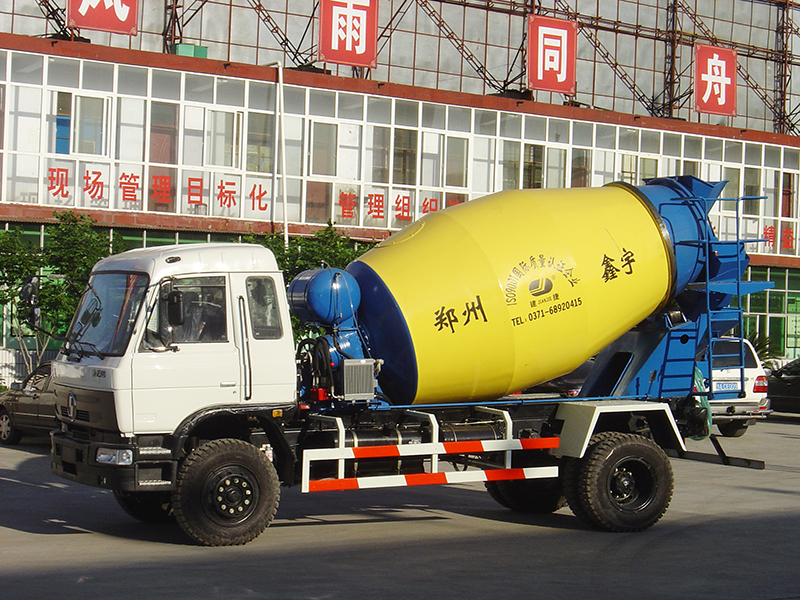

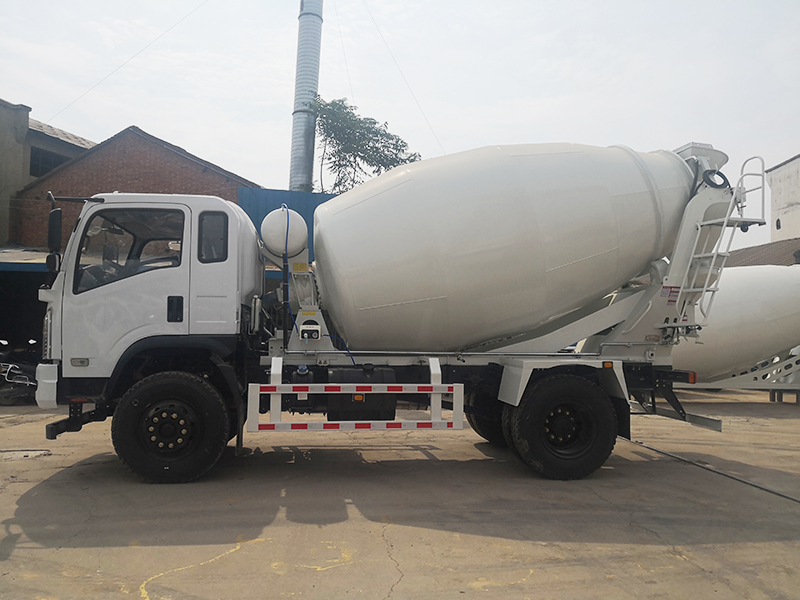

6CBM Concrete Mixer Truck

  • nominal mixing capacity of tank6m³
  • the dimension of bottom machinery(L*W*H)(mm)4430*860 *140
  • geomerical volume of tank9.6m³
  • coefficient of loading ration0.625
  • drum roating speed0-14rpm
  • inlet height(mm)2446
  • dumping direction of discharge duct180º
  • residual rate<1%
  • Product Overview
  • Technical parameters
  • Inquiry

 1.Description of 6CBM Concrete Mixer Truck  for Sale in China .

6CBM concrete mixing truck is a new product ,it is economical and practical, with convenient operation, uniform mixing and stable performance, and is suitable for bridge, tunnel, highway and urban & rural construction.


2.Feature of  6CBM Concrete Mixer Truck  for Sale in China

1. The hydraulic system adopts Germany Rexroth, Italy ARK, America Sauer;
2. Double screw blades make sure the concrete mix very thoroughly and continuous discharge and not segregation;
3. The mixing drum is made from the special close grain high-hardness steel plate B520JJ which is produced by Shanghai Baosteel and its service life can last 8-10 years;
4. With the minor angle inclination, the gravity of the whole truck is low and stable;
5. Equipped with the large diameter hopper, it can realize the quickly feeding, not plugging and spilling, and it is easy to clean;
6. With the discharge downspouting to pave the way for the quick and clean discharging;


3.Main parameters of JC6m3-D samll concrete mixer truck


model

JC3m³-D

JC4m³-D

JC6m³-D

JC8m³-D

JC8m³

JC10m³

JC12m³

the dimension of bottom machinery(L*W*H)(mm)

3200*860

*120

3600*860

*120

4430*860

*140

4900*860

*160

4900*860

*140

5580*860

*140

6100*860

*140

nominal mixing capacity of tank

3m³

4m³

6m³

8m³

8m³

10m³

12m³

geomerical volume of tank

5.5m³

6.8m³

9.6m³

13.4m³

13.4m³

16.4m³

19m³

coefficient of loading ration

0.545

0.588

0.625

0.545

0.545

0.61

0.63

drum roating speed

0-14rpm

0-14rpm

0-14rpm

0-12.5rpm

0-14rpm

0-14rpm

0-14rpm

inclinated angle of mixing tank axial line

16º±15´

16º±15´

15º±15´

15º±15´

15º±15´

11º±15´

11º±15´

inlet height(mm)

2072

2250-2350

2446

2552

2552

2716

2750

inclinated angle of discharge duct

45º

45º

45º

45º

45º

45º

45º

dumping direction of discharge duct

180º

180º

180º

180º

180º

180º

180º

the concrete slump that is suitable for conveying

40-210

40-210

40-210

40-210

40-210

40-210

40-210

residual rate

<1%

<1%

<1%

<1%

<1%

<1%

<1%

water tank capacity

180L

180L

180L

180L

180L

180L

180L





Model

JC3m³-D

JC4m³-D

JC6m³-D

JC8m³-D

JC8m³

JC10m³

JC12m³

the dimension of bottom machinery(L*W*H)(mm)

3200*860

*120

3600*860

*120

4430*860

*140

4900*860

*160

4900*860

*140

5580*860

*140

6100*860

*140

nominal mixing capacity of tank

3m³

4m³

6m³

8m³

8m³

10m³

12m³

geomerical volume of tank

5.5m³

6.8m³

9.6m³

13.4m³

13.4m³

16.4m³

19m³

coefficient of loading ration

0.545

0.588

0.625

0.545

0.545

0.61

0.63

drum roating speed

0-14rpm

0-14rpm

0-14rpm

0-12.5rpm

0-14rpm

0-14rpm

0-14rpm

inclinated angle of mixing tank axial line

16º±15´

16º±15´

15º±15´

15º±15´

15º±15´

11º±15´

11º±15´

inlet height(mm)

2072

2250-2350

2446

2552

2552

2716

2750

inclinated angle of discharge duct

45º

45º

45º

45º

45º

45º

45º

dumping direction of discharge duct

180º

180º

180º

180º

180º

180º

180º

the concrete slump that is suitable for conveying

40-210

40-210

40-210

40-210

40-210

40-210

40-210

residual rate

<1%

<1%

<1%

<1%

<1%

<1%

<1%

water tank capacity

180L

180L

180L

180L

180L

180L

180L
