HZS25 concrete batching plant

Parameter nameHZS25
Mixer typeJS500
Mixer power18.5kw
The nominal capacity of mixe500L
Max.aggregate size≤80mm
The capacity of power silo2×60t
The capacity of batching plant1200
The capacity of aggregate bin3×2.2m3

Product Overview
Technical parameters
Inquiry

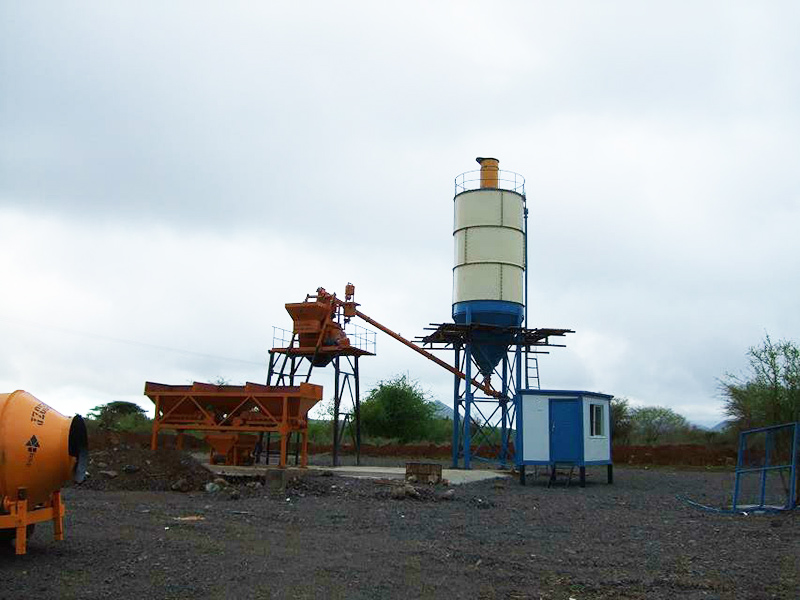

HZS25 Concrete Batching Plant

HZS series concrete batching plant belongs to compulsory and efficiency equipment, It includes JS concrete mixer, PLD batching machine,cement silo and control system. The main machine of this series use JS series double shaft compulsory mixer. It is widely used large and medium scale building works, road and bridge works and concrete products prefabrication plants, and is an ideal equipment to produce commercial used concrete.

Main Features

1.Adopt modular structure, installation and relocation is very convenient.

2.Using JS double shaft concrete mixer with PLD series concrete batching machine, accurate measurement and mixing of good quality and high production efficiency.

3.It can produce various kinds of concrete including quaking concrete and hard concrete, with high produce efficiency.

4.The overall structure is compact and fashionable, the layout is reasonable.
5.The operation is safe and reliable, its more easy to maintain.

Model		HZS25	HZS35	HZS50	HZS75	HZS100	HZS150
Theoretical Productivity(m3/h)		25	35	50	75	100	150
Mixer		JS500	JS750	JS1000	JS1500	JS2000	JS3000
Batching System		PLD800	PLD1200-2	PLD1600-2	PLD2400-2	PLD3200-4	PLD4800
Discharging Height(m)		3.8	3.8	4.2	4.2	4.2	4.2
The Max. Diameter of the aggregates (mm)		60-80	60-80	60-80	60-80	60-80	60-80
Automatic Cycle Period(s)		60	60	60	60	60	60
Batching accuracy(%)	Aggregate	±2%	±2%	±2%	±2%	±2%	±2%
	Cement	±1%	±1%	±1%	±1%	±1%	±1%
	Water	±1%	±1%	±1%	±1%	±1%	±1%
	Additive	±1%	±1%	±1%	±1%	±1%	±1%

Application

This series of concrete batching plant adopts modular structure, it is specially designed for customers who need to change the construction site frequently. It is simple in installation, compact in structure, place saving and high automation. It is mainly used for bridge, building, water conservancy project, power and other infrastructure projects.

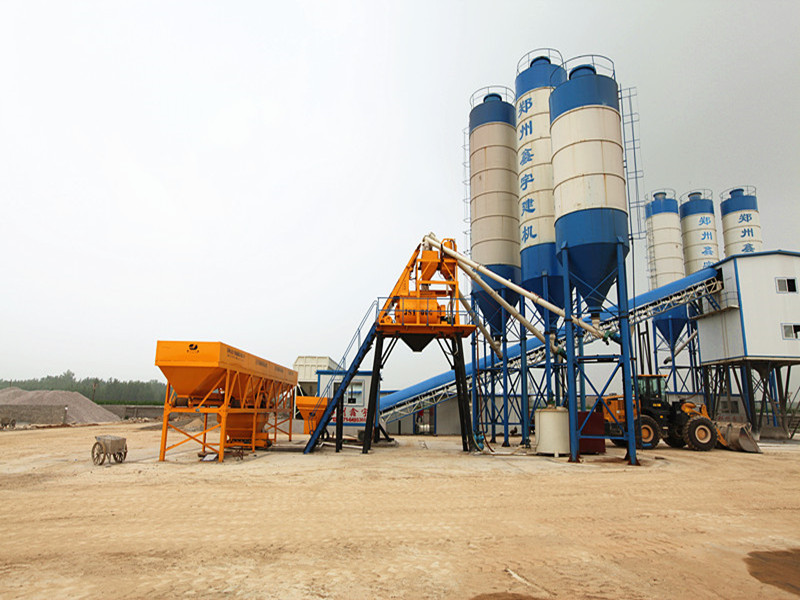

Inclined belt conveyor aggregate series mixing station
No.	Parameter name	HZS25	HZS35	HZS50	HZS60	HZS90	HZS120	HZS180
1	theoretical capacity (m3/h)	25	35	50	60	90	120	180
2	Mixer type	JS500	JS750	JS1000	JS1000	JS1500	JS2000	JS3000
3	Mixer power(kw)	18.5	30	37	37	2×30	2×37	2×55
4	The nominal capacity of mixer(L)	500	750	1000	1000	1500	2000	3000
5	Max.aggregate size (mm)	≤80	≤80	≤80	≤80	≤80	≤80	≤80
6	The capacity of power silo(t)	2×60	2×60	2×100/1×60	2×100/1×60	3×100	4×100	4×200
7	The capacity of batching plant (L)	1200	1200	1600	2400	2400	3200	4800
8	The capacity of aggregate bin (m3)	3×2.2	3×2.2	4×3.7	4×12	4×18	4×20	4×25
9	The kind of aggregate	3	3	4	4	4	4	4
10	The max.capacity of screw conveyor (t/h)	35	35	45/35	45/35	45	45	75
11	Discharge height (m)	4.2	4.2	4.2	4.2	4.2	4.2	4.2
12	Total Power(kw)	68	78	108	150	180	200	234
13	the scope and accuracy of aggregate weighting(kg)	2000 ±2％	2000 ±2％	3000 ±2％	4000 ±2％	5000 ±2％	5000 ±2％	8000 ±2％
14	the scope and accuracy of cement weighting(kg)	1200 ±1％	1200 ±1％	1200 ±1％	1200 ±1％	1500 ±1％	1500 ±1％	1800 ±1％
15	the scope and accuracy of fly ash weighting(kg)				600 ±1％	800 ±1％	800 ±1％	1000 ±1％
16	the scope and accuracy of water weighting(kg)	500 ±1％	500 ±1％	600 ±1％	600 ±1％	700 ±1％	700 ±1％	800 ±1％
17	the scope and accuracy of additive weighting(kg)	50 ±1％	50 ±1％	50 ±1％	50 ±1％	50 ±1％	50 ±1％	80 ±1％
