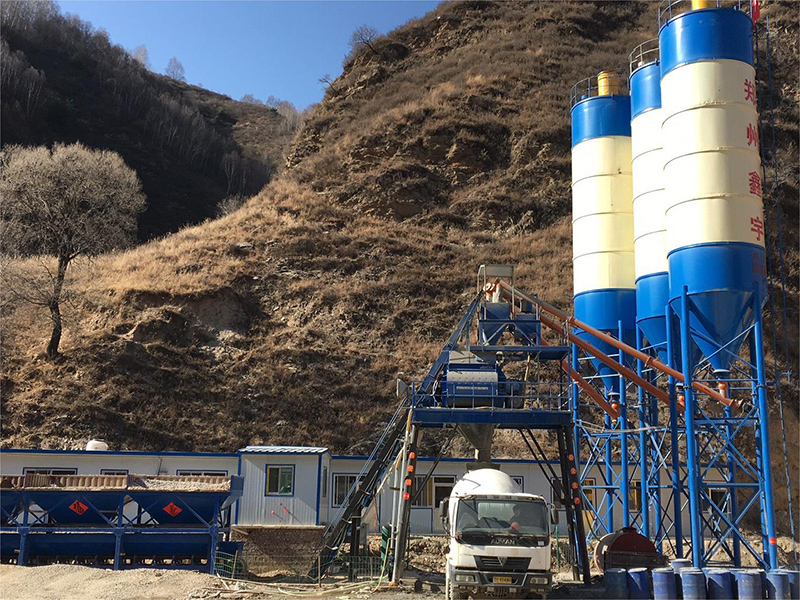

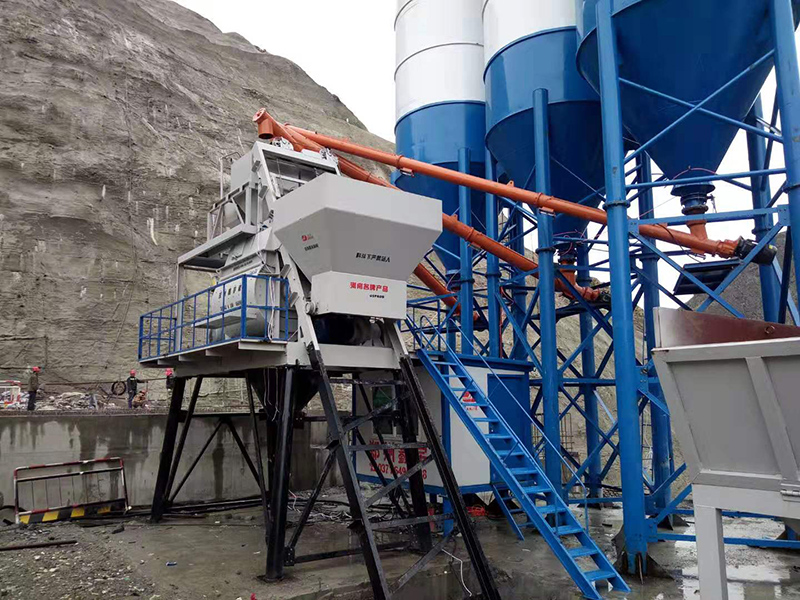

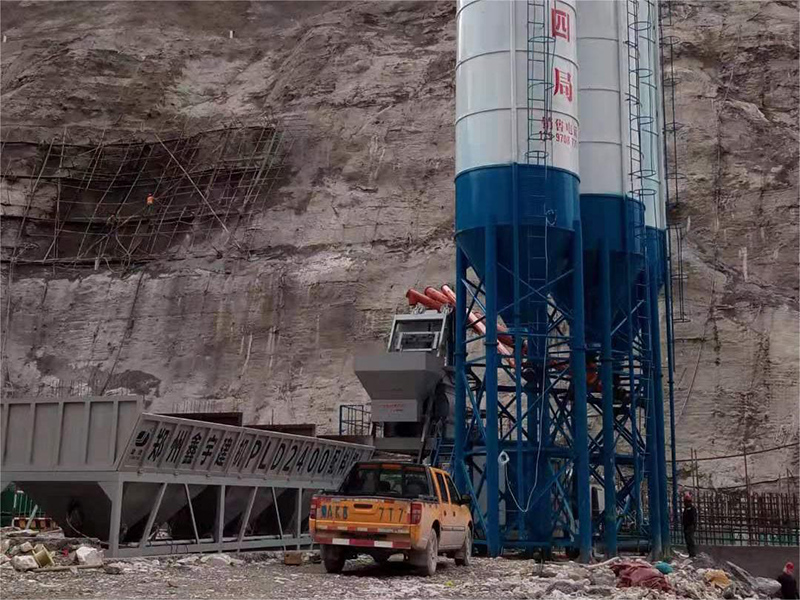

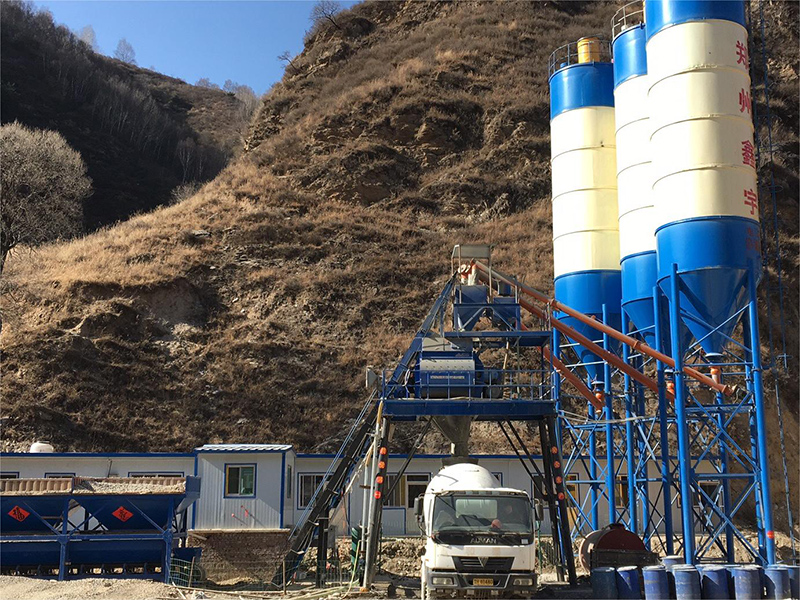

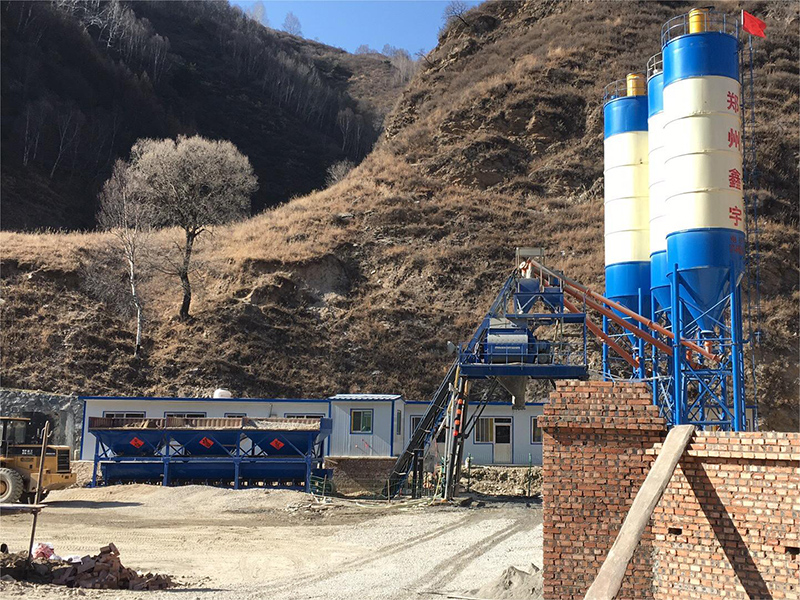

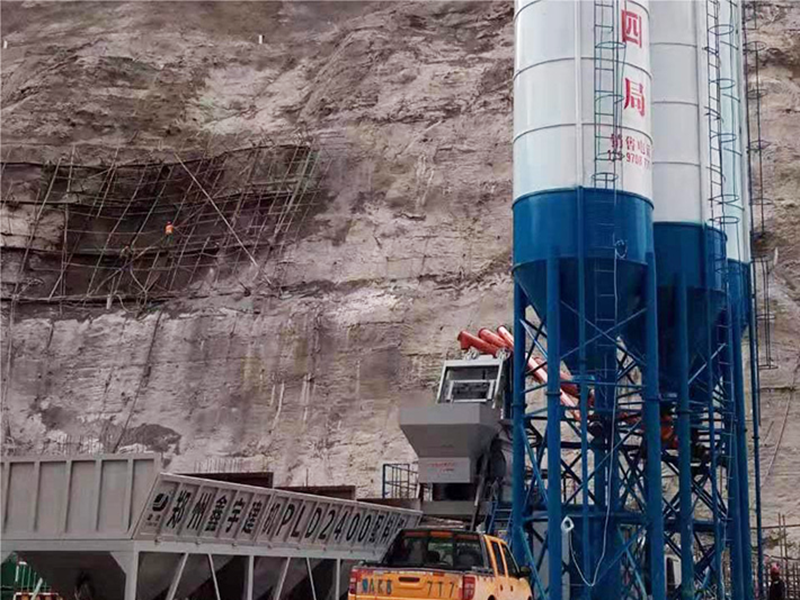

Produce Description
HZS series concrete batching plant belongs to compulsory and efficiency equipment, It includes JS concrete mixer,
PLD batching machine,cement silo and control system. The main machine of this series use JS series double shaft compulsory mixer.
It is widely used large and medium scale building works, road and bridge works and concrete products prefabrication plants, and is an ideal equipment to produce commercial used concrete.
.jpg)
Main Features
1.Adopt modular structure, installation and relocation is very convenient.
2.Using JS double shaft concrete mixer with PLD series concrete batching machine, accurate measurement and mixing of good quality and high production efficiency.
3.It can produce various kinds of concrete including quaking concrete and hard concrete, with high produce efficiency.5.The operation is safe and reliable, its more easy to maintain.
.jpg)
Application
HZS series hopper lift type concrete batching plants are widely used in various kinds of large and medium scale prefabricated factory, construction site, road, bridge, airport, tunnel and many other projects. It is also suitable for water conservancy , the electric power , the railroad, the road , the harbor-wharf and so on.
|
Model |
HZS75 |
|
|
Theoretical Productivity (m3/h) |
75 |
|
|
Mixer |
JS1500 |
|
|
Batching System |
PLD2400-2 |
|
|
Discharging Height(m) |
4.2 |
|
|
The Max. Diameter of the aggregates (mm) |
60-80 |
|
|
Automatic Cycle Period(s) |
60 |
|
|
Batching accuracy(%)
|
Aggregate |
±2% |
|
Cement |
±1% |
|
|
Water |
±1% |
|
|
Additive |
±1% |
|
Technical parameters
|
Model |
HZS75 |
|
|
Theoretical Productivity (m3/h) |
75 |
|
|
Mixer |
JS1500 |
|
|
Batching System |
PLD2400-2 |
|
|
Discharging Height(m) |
4.2 |
|
|
The Max. Diameter of the aggregates (mm) |
60-80 |
|
|
Automatic Cycle Period(s) |
60 |
|
|
Batching accuracy(%)
|
Aggregate |
±2% |
|
Cement |
±1% |
|
|
Water |
±1% |
|
|
Additive |
±1% |
|
