Brief Description

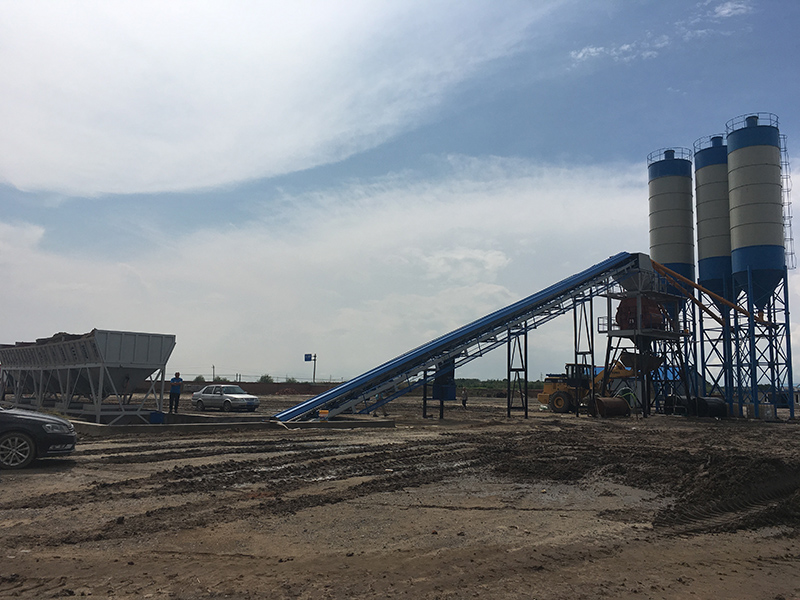

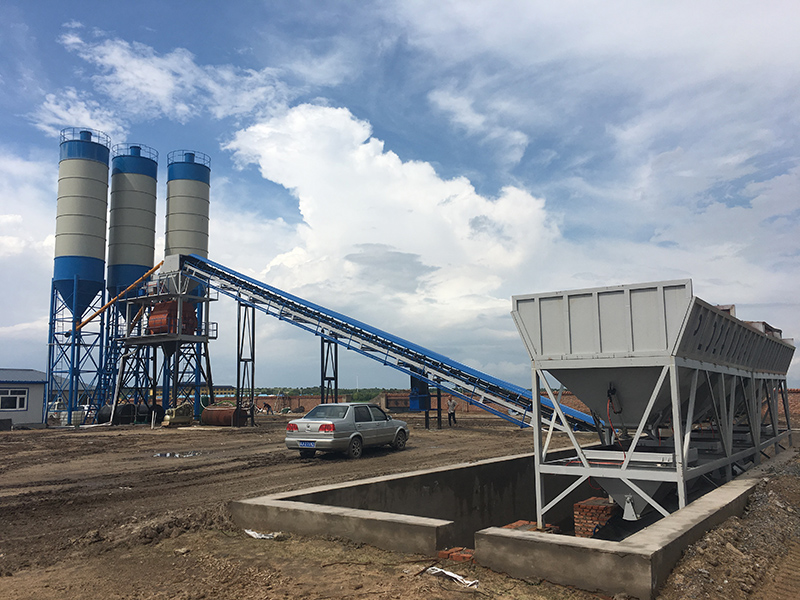

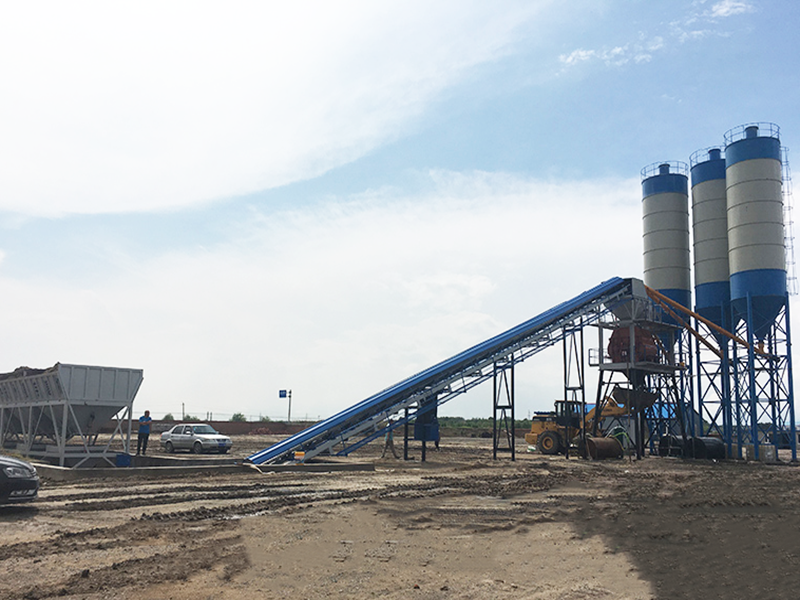

HZS series belt conveyor type of Concrete Batching Plant is developed by our company on the basis of adopting the world's sophisticated technologies, this concrete mixing plant have been widely used in the domestic and overboard, as well as earned a perfect reputations in the construction field, we have dedicated in manufacturing concrete mixing plant for many years.

Main Features

1.Adopt modular structure, installation and relocation is very convenient.
2.Using JS double shaft concrete mixer with PLD series concrete batching machine, accurate measurement and mixing of good quality and high production efficiency.
3.It can produce various kinds of concrete including quaking concrete and hard concrete, with high produce efficiency,
4.The overall structure is compact and fashionable, the layout is reasonable
5.The operation is safe and reliable, its more easy to maintain

Main technical parameter

Model		HZS60	HZS90	HZS120	HZS180
Mixing Plant	Theoretical productivity	60m3/h	90m3/h	120m3/h	180m3/h
	Discharging Height	4.2m	4.2m	4.2m	4.2m
	Installation Capability	108.8kw	153.5kw	213kw	264kw
Mixing System	Mixer Model	JS1000	JS1500	JS2000	JS3000
	Power	37kw	60kw	74.9	110.9
	Charge Capacity	1600L	2400L	3200L	4200L
	Discharge Capacity	1000L	1500L	2000L	3000L

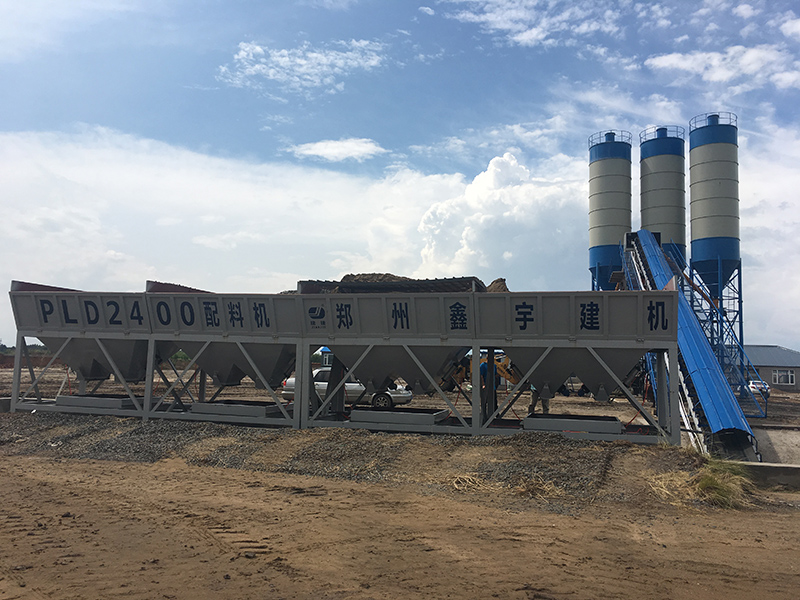

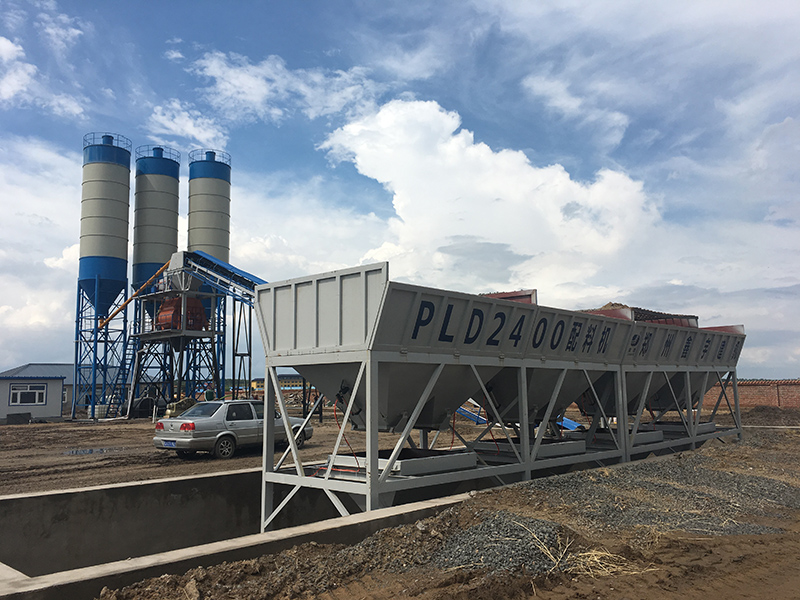

Aggregate Batching System	Batching machine Model	PLD2400-II	PLD3200-I	PL3200	PL4800
	Accuracy	±2%	±2%	±2%	±2%
Weighing System	Cement Scales	±1%	±1%	±1%	±1%
	Water Scales	±1%	±1%	±1%	±1%
	Additive Scales	±1%	±1%	±1%	±1%
	Measurement Precision	±1%	±1%	±1%	±1%

Application

HZS series belt conveyor type concrete batching plants are widely used in various kinds of large and medium scale prefabricated factory, construction site, road, bridge, airport, tunnel and many other projects. It is also suitable for water conservancy , the electric power , the railroad, the road , the harbor-wharf and so on.
